11mm 150M Fiberglass Duct Rod with Polyethylene Coating for Cable Push Pulling

11mm 150M Fiberglass Duct Rod with Polyethylene Coating for Cable Push Pulling

Detail Information

Place of Origin:

Jiangsu,China

Certification:

ISO

Rod Diameter:

11mm

Length Of Pulling Rod:

150M

Iron Frame:

Steel With High-temperature Sprayed Plastic Or Spray Coating

Selling Point:

Cable Laying Equipment

Rod Inner:

Extruded By Fiber Glass

Rod Outer:

Polyethylene Coating

Item:

11mm 150M Fiberglass Duct Rod Cable Rods Fishing Rod For Cable Push Pulling

Warranty:

1 Year

Packaging Details:

Carton

Supply Ability:

100sets/day

Highlight:

Product Description

11mm 150M Fiberglass Duct Rod Cable Rods Fishing Rod For Cable Push Pulling

Product Structure

Fiber glass rod inner: Extruded process made of E-fiberglass and high quality resin at high temperature
Fiber glass rod outer: Developed polymer coating

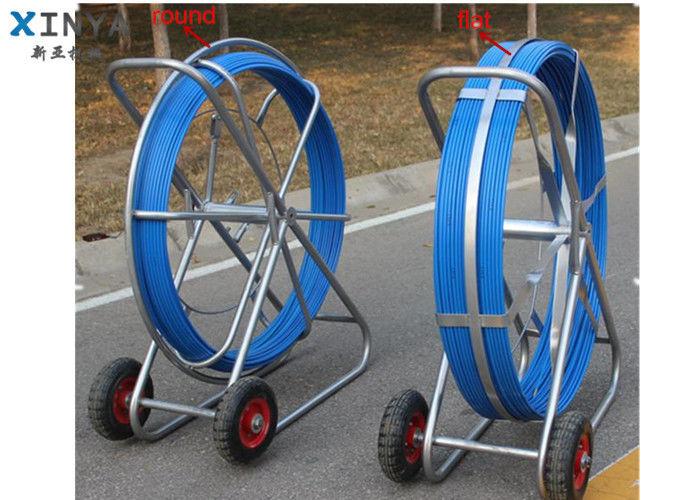

Assembly: Metal frame powder coated with rubber wheels for easy transportation
Guide rollers for rotary coupling and parking brake for flexible rod control
Optional copper wire inside for tracing or professional usage
Rolling bearing cage for strong and easy mobility
Feed device allows smooth rod insertion and extraction
Rustproof bull-nose pulling tips with diverse accessories

Cable Duct Rod Features

Lightweight yet durable with excellent chemical and corrosion resistance
High tensile strength and bending properties for navigating narrow pipes
Excellent temperature adaptability (-40°C to +80°C) without softening or brittleness
Hard, smooth and wear-resistant composite material jacket
Available with meter marks for measurement
Standard yellow color with other colors optional
Rod Length: 1-500m
Rod Diameter: 4mm-16mm available

Frame and Reel Features

Technical Specifications

Specification	Details
Rod Diameter (mm)	Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16
Rod Length (m)	30~500
Frame Spec.(mm)	1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc
Wheel Diameter(mm)	300mm
Wall thickness of Metal Frame	2.2mm
Color	blue, yellow, red, white etc
Material	Rod Inner: Extruded by fiber glass and high strength resin at high temperature Rod Outer: High Density polyethylene coating Iron Frame: Steel with high-temperature sprayed plastic or Spray coating Wheel: rubber Brake: Yes Drawing head: copper
Physical Characteristics	Density: 55g/m Working temperature: -40°C to +80°C Breaking tension: 100kg Bending Radius: 295mm Technology: Pultrusion
Packaging	Inside: plastic woven strip wind around the frame Outside: Wooden pallet and Wooden box
