SH10TY Universal Block Cross arm Mounted Stringing Block Pulley Block

Large Image : SH10TY Universal Block Cross arm Mounted Stringing Block Pulley Block

Product Details:

Place of Origin:	Jiangsu , China
Brand Name:	XINYA
Certification:	ISO9001
Model Number:	SH10TY

Payment & Shipping Terms:

Minimum Order Quantity:	1 pieces
Price:	get lastest price
Packaging Details:	carton
Delivery Time:	10-15 days after payment
Payment Terms:	L/C, T/T,
Supply Ability:	1000 Piece/Pieces per Month

Contact Now

SH10TY Universal Block Cross arm Mounted Stringing Block Pulley Block

Description

Item:	Stringing Block Pulley Block	Sheave:	178x76mm
Type:	Stringing Pulley Block	Wheel:	Aluminum
Rated Load:	10KN	Weight:	4.3kg
Highlight:	wire rope pulley block , cable hoist puller

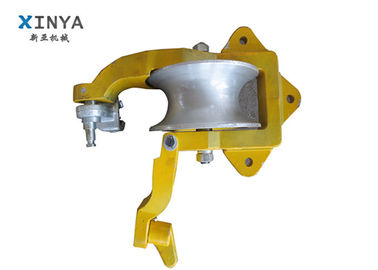

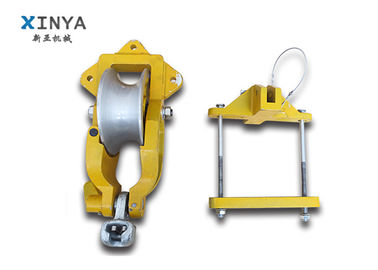

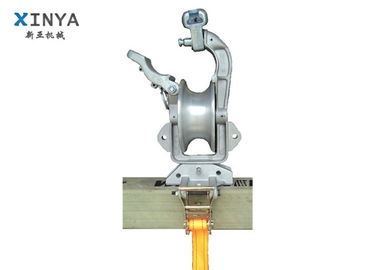

SH10TY Universal Block Cross arm Mounted Stringing Block Pulley Block

Versatile conductor stringing block that can be used in suspension utilizing a high strength, hot dipped galvanised socket connector; or used on crossarms using an adjustable crossarm bracket.

Features

Adjustable to five positions using cross bracket that fits crossarms up to 125 x 150 mm
100% positive locking spring loaded
Head pin assembly has large loop for hot stick operation
Light but extremely rugged
Sheave and crossarm bracket are permanent mould castings with heat treatment
Anti-friction ball bearings are lubricated for life of block under normal conditions
Neoprene and Urethane linings are available

Additional attachment options available on request.

Data Sheet

Item Numer	10295
Rated load(KN)	10
Sheave diameter(mm)	178x76
Weight(Kg)	4.3
Applicable crossarm width of caliper(mm)	99-175
Height(mm)	95-159
Caliper weight(kg)	1.6

Notes:It is a versatile block,it either used in the head of insulartor string or fixed on the caliper of crossarm.

SH10TY Universal Block Cross arm Mounted Stringing Block Pulley Block 0

Tag:

Contact Person: Ms. Wendy

Tel: 86-15050307199

Fax: 86-512-52844879
