Product Details:
|
| Output: | 130KN | Working Stroke: | 38MM |
|---|---|---|---|
| Crimping Type: | Hexagon Crimping | Weight: | 6.5KG |
| Oil Capacity: | 145CC | Die Set: | 50, 70, 95, 120, 150, 185, 240, 300, 400 Mm2 |
| High Light: | 400mm2 Hydraulic Crimping Pliers,Cu Conductor Hydraulic Crimping Pliers,AL Conductor Cable Crimping Tool Hydraulic |
||

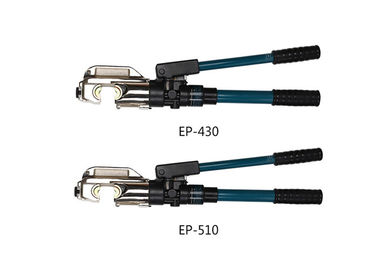

16-400mm2 Hydraulic Crimping Pliers EP-510 AL/Cu Conductor with CE certification
1. Design to accommodate hexagonal, dies of hydraulic tools for applying compression fittings too copper, aluminum conductors.
2. Two stage pumping action for rapid ram advance to the connector hold position with minimum pumping action.
3. Automatic retraction when the pressure of crimper tools reaches 700kg/cm2 reached.
4. The glass fiber operation insulates the stick, the crimping tool can bear the electric voltage 200KV, keeping on the minute.
5. Hydraulic tools with 180 degree rotatable head.
6. The pressure of the hydraulic tools outside the body adjusts to press the valve.
Model:EP-510 (Safety valve inside)
| Crimping Range | Cu 16-400mm2 |
| Crimping Force | 13T |
| Crimping Type | hexagon crimping |
| Stroke | 38mm |
| Oil capacity | 145CC |
| Weight | approx. 6.8kg |
| Package | plastic case |
| Accessories |

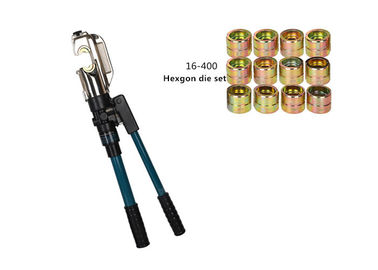

50,70, 95, 120, 150, 185, 240, 300, 400 mm2 |
Suit for the areas
This series product is suitable for use in power plants, power supply bureau, telecommunication bureau, shipyards, machinery transmission and distribution plate of copper. Aluminum terminal blocks and connecting pipe, using the hexagon mould, pressing connect closely, conductive good, not easy to fall off and thermal conductivity
