Product Details:
|
| Name: | Steel Wire Rope Reel Stand | Materail: | Steel |
|---|---|---|---|
| Feature: | Traction Wire Rope | Type: | Reel Stand |
| Weight (kg): | 12-59kg | Application: | Support The Steel Wire Rope Reel |
| High Light: | GSP Rope Reel Stand,Steel Wire Rope Reel Stand,Rope Reel Stand Cable Pulling Tools |
||

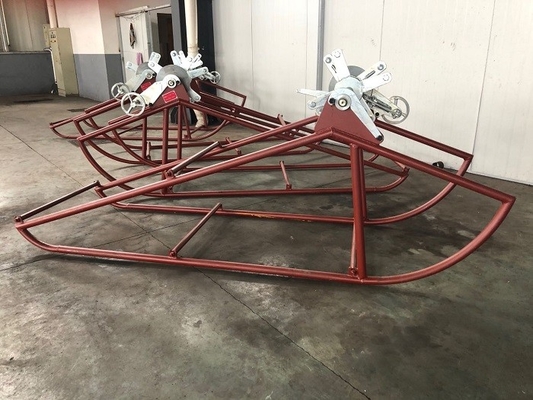

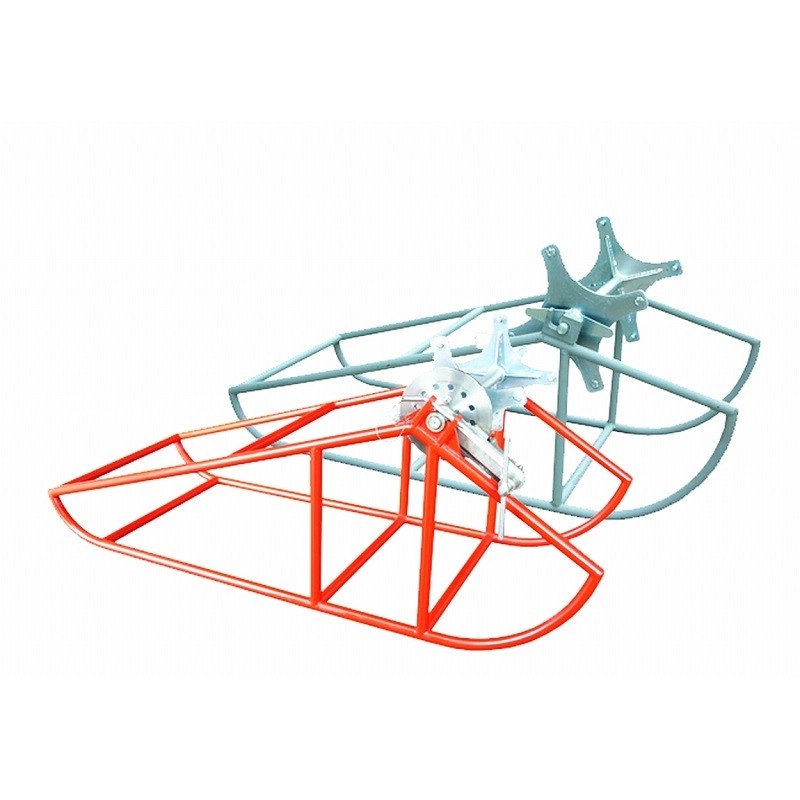

Brake Frame Electric Wire Rope Reel Stand for Supporting Cable Rope Reel GSP Steel Wire Rope Reel Stand
This cradle reel stand is utilized to support the steel wire rope reel. The matched models are put in one-to-one correspondence.
|
Item Number
|
Model
|
Outer Diameter ×Root Diameter ×Width of Reel (mm)
|
Weight (kg)
|
|||
|
15111
|
SE-1
|
Φ480×Φ220×340
|
13
|
|||
|
15112
|
SE-2
|
Φ720×Φ400×640
|
30
|
|||
|
15113
|
SE-3
|
Φ850×Φ220×340
|
40
|
|||
|
15114
|
SE-4
|
Φ950×Φ220×340
|
50
|
|||
|
15115
|
SE-5
|
Φ1100×Φ220×340
|
55
|
|||
|
15116
|
SE-6
|
Φ1200×Φ220×340
|
59
|
|||
|
Item Number
|
Model
|
Outer Diameter ×Root Diameter ×Width of Reel (mm)
|
Weight (kg)
|
|
15101
|
SE-1J
|
1000×420×350
|
12
|
|
15102
|
SE-2J
|
1400×720×530
|
16
|
|
15103
|
SE-3J
|
1400×720×530
|
20
|
|
15104
|
SE-4J
|
1660×720×630
|
20
|
|
15105
|
SE-5J
|
1750×730×680
|
30
|
|
15106
|
SE-6J
|
1840×730×710
|
39
|
