Created with Pixso. 2x50KN Continuous Tension Hydraulic Tensioner with Diesel Engine and Electronic Control for Cable Stringing
  • name
  • name
  • name

2x50KN Continuous Tension Hydraulic Tensioner with Diesel Engine and Electronic Control for Cable Stringing

Brand Name: XINYA
Model Number: SA-YZ2×50
MOQ: 1set
Price: get latest price
Delivery Time: 60-90days after payment
Payment Terms: L/C,T/T,
Detail Information
Product Description
Detail Information
Place of Origin:
Jiangsu, China
Certification:
ISO
Maximum Tension(kN):
2x55/1x110kN
Continuous Tension(kN):
2x50/1x100kN
Maximum Speed (km/h):
5
Engine Power /speed (kW/rpm):
77kw(103hp)
Dimensions (mm):
4400x2280x2550
Weight(kg):
6250
Product:
Hydraulic Cable Tensioner
Warrranty:
1 Year
Packaging Details:
standard export package
Supply Ability:
1 Set/Sets per Month
Highlight:

2x50KN Hydraulic Tensioner

,

Wire Tension Device Hydraulic Tensioner

,

Two Conductor Hydraulic Tensioner

Product Description

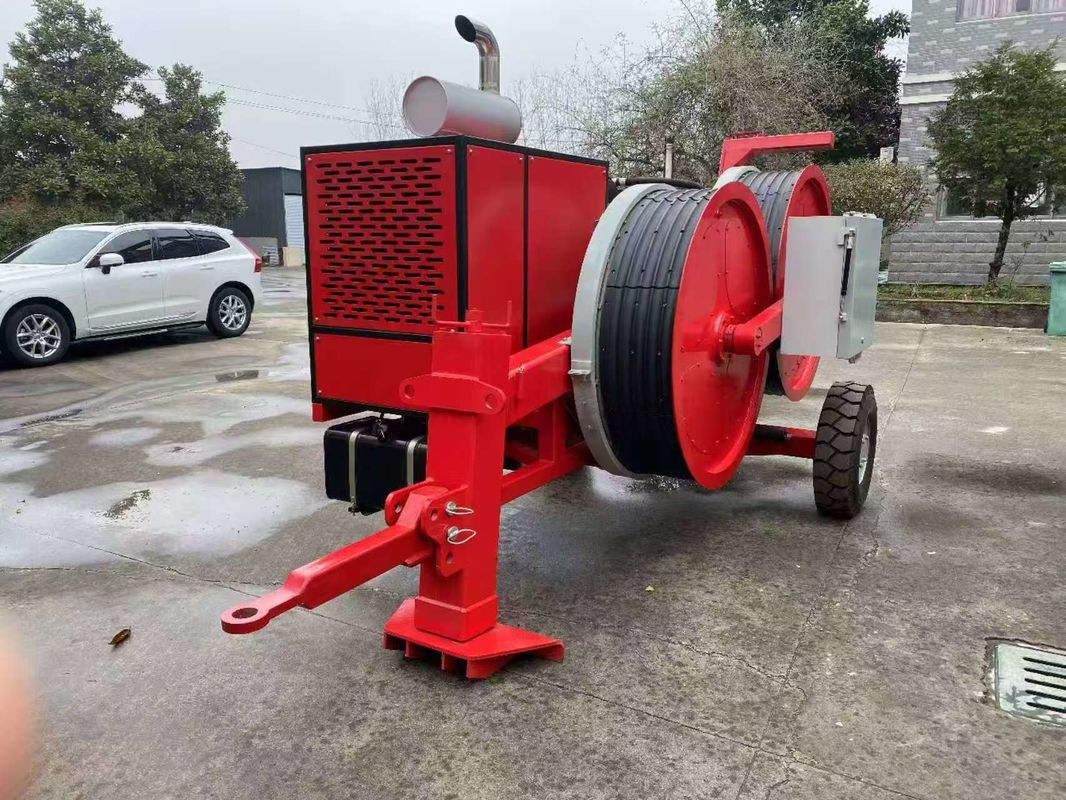

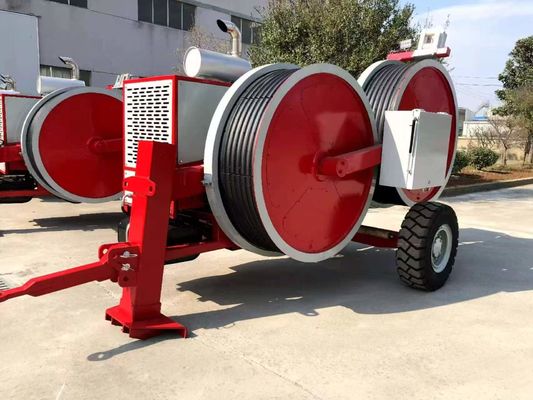

2x50KN Hydraulic Tensioner Wire Tension Device For Stringing Two Conductor
The GL2x50/1x100KN Hydraulic Tensioner Machine is engineered for stringing one or two ropes or bundled conductors, featuring two pairs of bull-wheels with completely independent controls. The bull-wheel grooves are constructed from high-resistance interchangeable nylon sectors, and the entire system operates with advanced electronic control technology.
Performance Specifications
Max Intermittent Tension 2x55/1x110 kN
Max Continuous Tension 2x50/1x100 kN
Speed at Maximum Pull 2.5 km/h
Maximum Speed 5 km/h
Tension at Maximum Speed 2x25/1x50 kN
Maximum Reverse Pulling Force 2x45/1x90 kN
Maximum Reverse Pulling Speed 5 km/h
Engine Specifications
Engine Type Diesel
Power Output 77 kW (103 hp)
Cooling System Water
Electrical System 24V
Technical Characteristics
Bull-wheel Diameter 1300/1500 mm
Maximum Conductor Diameter 40 mm
Groove Number 2×5
Total Weight 6250 kg
Overall Dimensions 4400 × 2280 × 2550 mm
Main Configuration
Engine Famouse Diesel Engine
Hydraulic Pump German Rexroth / Danish Danfoss
Main Motor German Rexroth / French Leduc
Speed Reducer German Rexroth
Hydraulic Meter German WIKA
Operating Handle German Rexroth
Standard Configuration
  • 2 hydraulic dynamometers
  • Hydraulic oil cooling system
  • 2 digital meter counters
  • 2 digital speed meters
  • Control instruments for hydraulic system and diesel engine
  • Hydraulic front stabilizer
  • Grounding connection point
  • Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
Hydraulic Transmission Features
  • Stepless speed control capability
  • Tension presetting system
Additional Optional Devices
  • Lighting system for the trailer
  • Air brake system for the trailer (extra charge)
  • 2 hydraulic conductor clamps for drum change operations (extra charge)
  • Digital speed and meter counter
