| Brand Name: | XINYA |
| Model Number: | SH3Z |
| MOQ: | 1set |
| Price: | Negotiable |
| Delivery Time: | 10-20 days |
| Payment Terms: | L/C,T/T,Western Union |

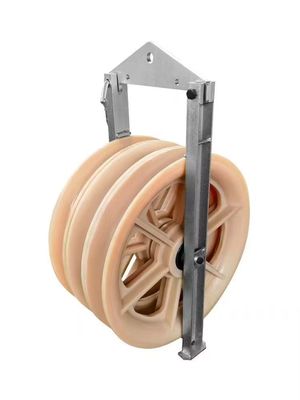

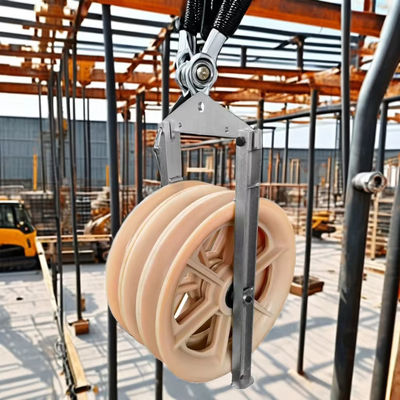

The Large Diameter 3-Sheave Nylon Belt Pulley Stringing Block is a durable and high-performance device designed for overhead power line construction and cable stringing operations. Its three sheaves allow multiple conductors or ropes to be guided simultaneously, improving stringing efficiency and reducing conductor friction.
Constructed with high-quality nylon and precision steel bearings, this pulley block ensures smooth operation, long service life, and minimal maintenance. The large diameter design further enhances performance for heavy-duty applications. OEM customization options are available to meet specific project requirements.
A 3-sheave nylon pulley stringing block is a mechanical device used to guide and support conductors, ropes, or cables during stringing of transmission and distribution lines.
The nylon sheaves provide low-friction, lightweight, and durable operation, while the large diameter ensures smooth cable movement under high tension. Customizable OEM options allow adaptation to different cable sizes, load capacities, and project specifications.
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
|---|---|---|---|---|---|
| 10102H | SH3Z508 | 300-400 | 40 | 61 | Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene |
| 10105H | SH3ZL508 | 300-400 | 40 | 47 | Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene |
| 10122H | SH3ZL660 | 400-500 | 40 | 106 | Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene |
| 10125H | SH3ZLN660 | 400-500 | 40 | 92 | Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene |
| 10146H | SH3ZLN822 | 500-700 | 60 | 128 | Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene |
| 10107H | SH3Z508 | 300-400 | 40 | 43 | Nylon, optional can be lined with neoprene |
| 10127H | SH3Z660 | 400-500 | 40 | 76 | Nylon, optional can be lined with neoprene |
| 10132H | SH3Z750 | 500-600 | 60 | 98 | Nylon, optional can be lined with neoprene |
| 10142H | SH3Z822 | 600-700 | 60 | 110 | Nylon, optional can be lined with neoprene |
| 10152H | SH3Z916 | 700-800 | 75 | 126 | Nylon, optional can be lined with neoprene |
| 10166H | SH3Z1040 | 800-900 | 105 | 200 | Nylon, optional can be lined with neoprene |
