Product Details:
|
| Steel Grade: | Steel Wire Rope | Wire Gauge: | 20(mm) |
|---|---|---|---|
| Type: | Galvanized | Breaking Force: | 309KN |
| Manufacturing Experince: | Over 20 Year | Item: | 20mm High Strength Anti-Torsion Steel Wire Rope For Transmission Line Tension Wiring |
20mm High Strength Anti-Torsion Steel Wire Rope for Transmission Line Tension Wiring
Anti twisting galvanized pilot wire rope is used for pulling conductors or OPGW, earth wire in the overhead transmission line construction.
Anti twisting steel rope is specially braided from high strength, galvanized steel wire. The braided steel strand has high flexibility, complete stability to rotation under tension force.
It can homogeneously distribute the pressure between the elementary wires. The special rope can increase efficiency during the overhead transmission line stringing work.

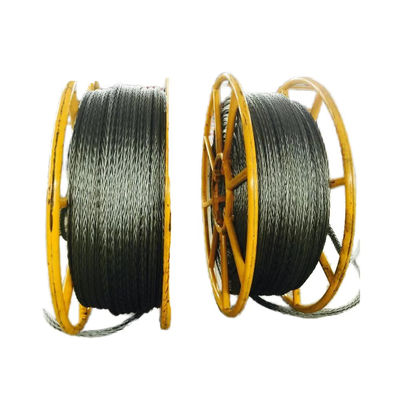

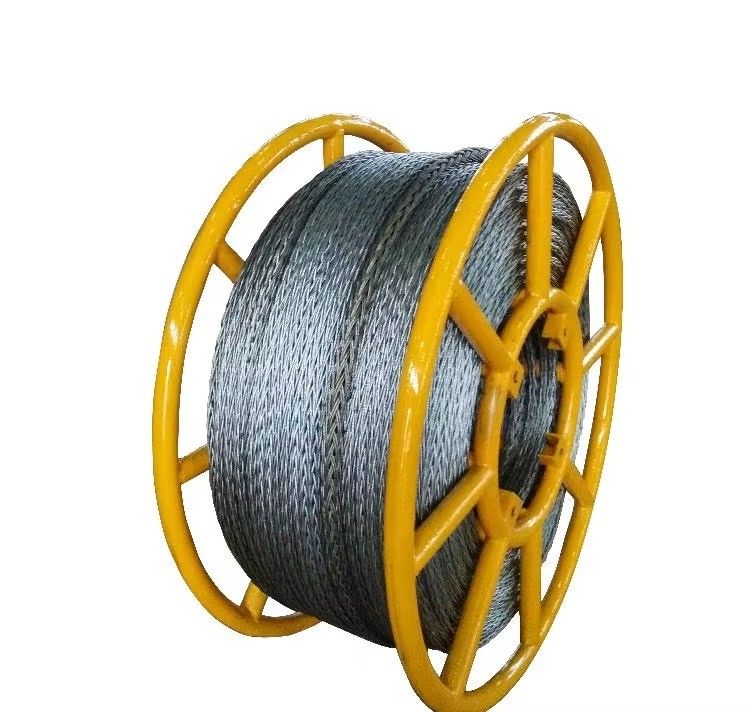

The rope is packed in steel drum, which can be installed on the reel winder of conductor puller directly.
|
Hexagonal section twelve strands anti-twist steel wire rope
|
||||
|
Model
|
Diameter(mm)
|
Femoral diameter(mm)
|
Unit weight(kg/m)
|
Normal tensile strength(Mpa)
|
|
1960
|
||||
|
Minimum pull force(KN)
|
||||
|
YL9-12*19W
|
9
|
2.0
|
0.26
|
55
|
|
YL11-12*19W
|
11
|
2.5
|
0.40
|
88
|
|
YL13-12*19W
|
13
|
3.0
|
0.57
|
125
|
|
YL15-12*19W
|
15
|
3.5
|
0.79
|
170
|
|
YL18-12*19W
|
18
|
4.0
|
1.03
|
207
|
|
YL20-12*29Fi
|
20
|
4.5
|
1.30
|
270
|
|
YL22-12*29Fi
|
22
|
4.8
|
1.48
|
330
|
|
YL24-12*29Fi
|
24
|
5.2
|
1.80
|
373
|
