10KN Straight Nylon Aluminum Cable Pulley Block 230x260x330mm

Brand Name: XINYA
Model Number: CRS-3600/CRS-3600N
MOQ: 1 pieces
Price: get latest price
Delivery Time: 7 days after payment
Payment Terms: L/C,T/T,
Detail Information
Place of Origin:
Jiangsu , China
Certification:
ISO9001
Rated Load:
10KN
Weight:
3.5KG
Size:
230mm*260mm*330mm
Application:
Setting Cable
Type:
Straight Type Nylon Aluminum Alloy Cable Ground Pulley Block
Surface Treatment:
Galvanization Or Coating
Packaging Details:
carton
Supply Ability:
1000 Piece/Pieces per Month
Highlight:

nylon aluminum alloy cable pulley

,

straight type ground pulley block

,

underground cable pulley with warranty

Product Description
Straight Type Nylon Aluminum Alloy Cable Ground Pulley Block
Description
The Straight Type Nylon Aluminum Alloy Cable Ground Pulley Block is a professional cable laying tool designed to guide and protect cables during installation. It features high-strength nylon or aluminum alloy rollers mounted on a durable steel frame with anti-rust treatment. This pulley block ensures smooth cable movement on the ground, preventing friction damage and enabling safe, efficient operation.
Application
This pulley block is widely used in underground and overhead cable installation projects. It is placed directly on the ground, in trenches, or at cable pits to support and guide power cables, communication cables, and optical fiber cables. Contractors benefit from minimized cable bending stress, reduced friction, and safer, faster cable pulling operations.
Advantages
  • Protects cables from wear, scratches, and insulation damage
  • Smooth nylon or aluminum rollers reduce pulling tension and improve efficiency
  • Strong welded steel frame with galvanized or powder-coated surface for long service life
  • Lightweight, portable, and easy to deploy on any construction site
  • Multiple units can be combined to guide cables over long distances
Specification
Note: Used for cables with diameter φ150 or less, models with N for nylon wheel, without N for aluminum wheel.

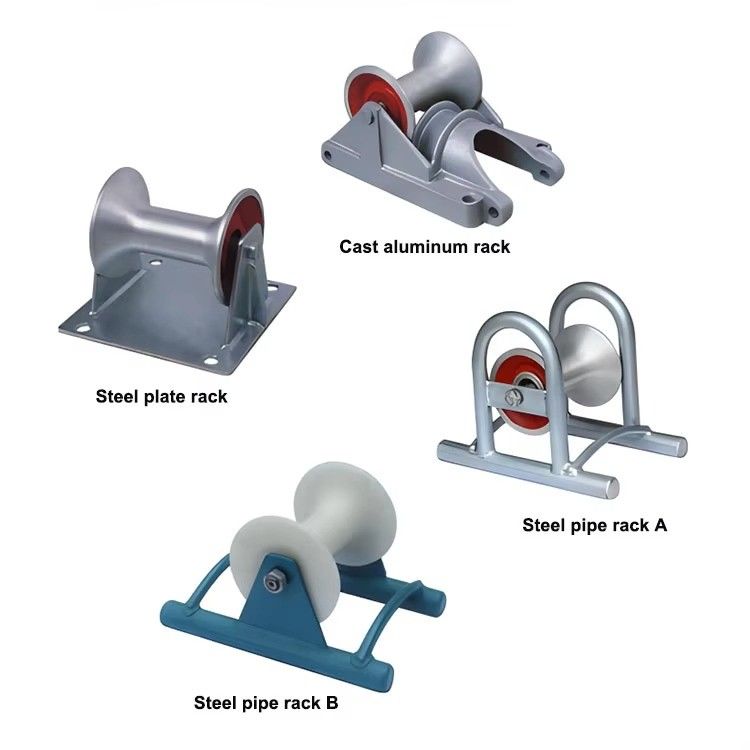

Model Rated load(KN) Structure type Weight(kg)
SHL1 5 Cast aluminum frame 5.4
SHL1N 5 3.6

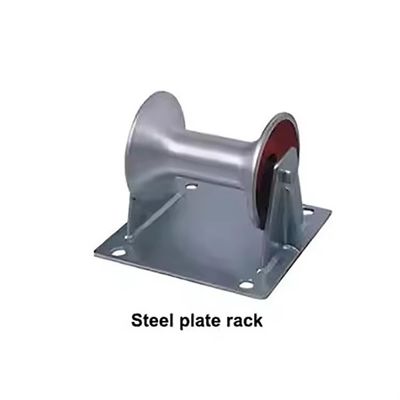

SHL1B 5 Steel plate frame 5.5
SHL1BN 5 3.7
SHL1G 5 Steel tube frame 5.1
SHL1GN 5 3.3
10KN Straight Nylon Aluminum Cable Pulley Block 230x260x330mm 0 10KN Straight Nylon Aluminum Cable Pulley Block 230x260x330mm 1 10KN Straight Nylon Aluminum Cable Pulley Block 230x260x330mm 2
The Straight Type Nylon Aluminum Alloy Cable Ground Pulley Block is an essential tool for safe and efficient cable installation. With its strong rollers, durable frame, and flexible usage, it ensures smooth cable pulling without damage, making it the ideal choice for power, telecom, and utility contractors.
