| Brand Name: | XINYA |
| Model Number: | QHN |
| MOQ: | 10pcs |
| Price: | USD15-50/pc |
| Delivery Time: | 7 workdays after payment |
| Payment Terms: | L/C, T/T, |

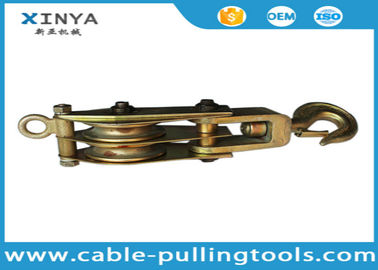

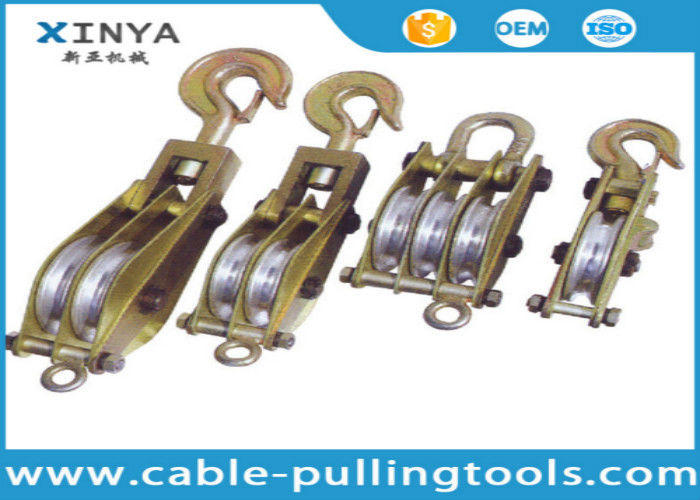

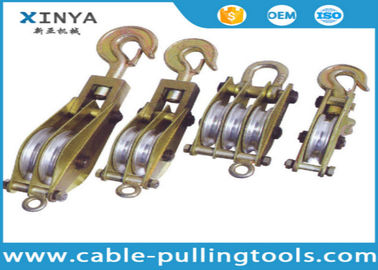

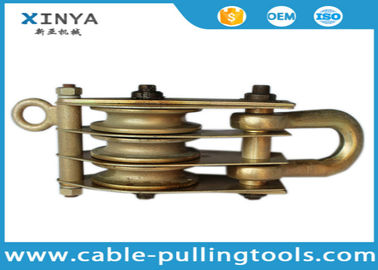

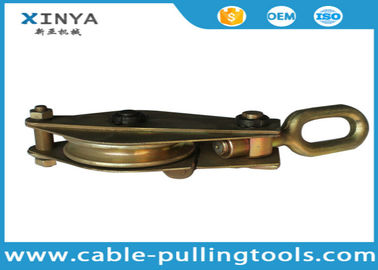

Transmission Line Stringing Tools / Snatch Steel Wire Rope Pulley Block
Application
Snatch Steel Wire Rope Pulley Block is for lifting.It can be used in single, also can be used as a block.
Characteristics
1. Material: Aluminum alloy
2. Single wheel opening hook type.Two or three sheaves are closed.
3. It is light weight using the aluminum alloy.
Technical Data
|
Order number |
Model |
Number of sheaves |
Rated load (kN) |
Outside diameter ×width(mm) |
Weight (kg) |
Hoisting point type |
||
|
11101 |
QH1GN-1K |
1 |
10 |
Φ100×31 |
1.8 |
G |
H |
|
|
11102 |
QHN1-2 |
2 |
10 |
Φ80×27 |
1.8 |
G |
H |
|
|
11103 |
QHN1-3 |
3 |
10 |
Φ80×27 |
2.1 |
G |
H |
|
|
11111 |
QHN2-1K |
1 |
20 |
Φ120×35 |
2.2 |
G |
H |
B |
|
11112 |
QHN2-2 |
2 |
20 |
Φ100×31 |
2.6 |
G |
H |
|
|
11113 |
QHN2-3 |
3 |
20 |
Φ100×31 |
3.7 |
G |
H |
|
|
11121 |
QHN3-1 |
1 |
30 |
Φ150×39 |
3.4 |
G |
H |
B |
|
11122 |
QHN3-2 |
2 |
30 |
Φ120×35 |
4.5 |
G |
H |
|
|
11123 |
QHN3-3 |
3 |
30 |
Φ100×31 |
4.6 |
G |
H |
|
|
11131 |
QHN5-1K |
1 |
50 |
Φ166×40 |
5.2 |
G |
H |
B |
|
11133 |
QHN5-2 |
2 |
50 |
Φ150×39 |
5.5 |
G |
H |
|
|
11134 |
QHN5-3 |
3 |
50 |
Φ120×35 |
5.1 |
G |
H |
|
|
11141 |
QHN8-1K |
1 |
80 |
Φ205×49 |
7.2 |
G |
H |
B |
|
11142 |
QHN8-2 |
2 |
80 |
Φ166×40 |
8.3 |
G |
H |
|
|
11143 |
QHN8-3 |
3 |
80 |
Φ150×39 |
7.9 |
G |
H |
|
|
11151 |
QHN10-1K |
1 |
100 |
Φ246×60 |
11.4 |
G |
|
B |
|
11152 |
QHN10-2 |
2 |
100 |
Φ166×40 |
10.2 |
|
H |
|
|
11153 |
QHN10-3 |
3 |
100 |
Φ150×39 |
11.7 |
|
H |
|
|
11161 |
QHN15-1K |
1 |
150 |
Φ280×65 |
12.1 |
|
|
B |
|
11162 |
QHN15-2 |
2 |
150 |
Φ205×49 |
12.8 |
|
H |
|
|
11163 |
QHN15-3 |
3 |
150 |
Φ166×40 |
11.8 |
|
H |
|
|
11164 |
QHN15-4 |
4 |
150 |
Φ150×39 |
13.9 |
|
H |
|
·uses :applied in line construction to craning weight ,etc.
·Features: to adopt aluminum alloy side panel and MC nylon sheave .so it is light .monosheave block is open.
