Product Details:
|
| Rated Load: | 10-40KN | Material: | Aluminum Alloy |
|---|---|---|---|
| Application: | Power Construction | Usage: | Tightenning |
| Function: | Tight Wire | Type: | Cable Grip |
| Highlight: | block and tackle hoist,cable hoist puller |
||

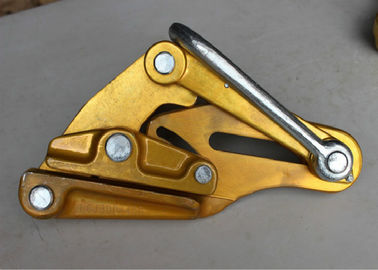

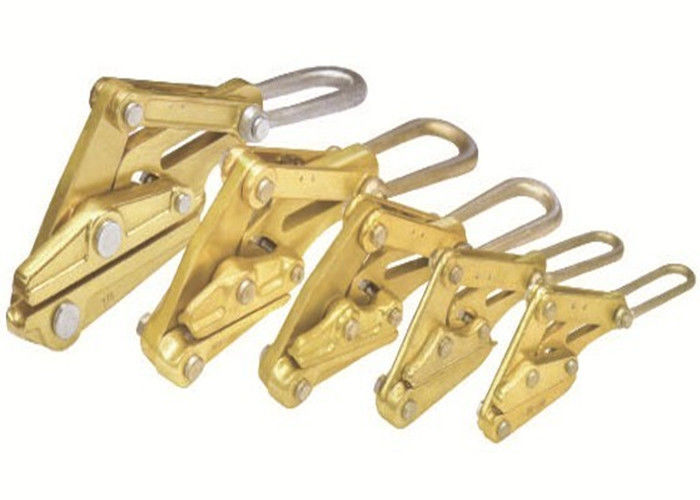

Aluminum Alloy Self Gripping Come Along Clamps Conductor Cable Grip
Application
It is used to adjust sag in the operation of erecting wire and sagging.
Characteristic
Wire Rope Hand Puller Cable Grip is suitable to tighten the Insulated conductors or adjust of sag.
With high stength aluminum titanium alloy forging, the weight is light.
The jaw part adopts a special texture processing so that
it can firmly clamp the cable and does not hurt the inner core whether winter or summer.
Use and Characteristic
Self Gripping Clamps Conductor Cable Grip is suitable to tighten the Insulated conductors or adjust of sag.
With high stength aluminum titanium alloy forging, the weight is light.
The jaw part adopts a special texture processing so that
it can firmly clamp the cable and does not hurt the inner core whether winter or summer.
Technical Data
|
Item No. |
Model No. |
Rated Load (KN) |
Applicable Conductor (ACSR-MM2) |
Max Open (MM) |
Unit Weight (KG) |
|
0101 |
SKL-7 |
7 |
25~70 |
14 |
1.0 |
|
0102 |
SKL-15 |
15 |
95~120 |
18 |
1.4 |
|
0103 |
SKL-25 |
25 |
150~240 |
24 |
3.0 |
|
0104 |
SKL-40 |
40 |
300~400 |
32 |
4.0 |
|
0105 |
SKL-50 |
50 |
500~630 |
36 |
6.6 |
|
0106 |
SKL-40G |
40 |
400 |
32 |
4.3 |
|
0107 |
SKL-50G |
50 |
500 |
34 |
7.0 |
|
0108 |
SKL-50GA |
50 |
630 |
36 |
7.3 |
|
0109 |
SKL-60G |
60 |
720 |
38 |
9.2 |
|
0111 |
SKL-70G |
70 |
900 |
42 |
14.0 |
|
0112 |
SKL-80G |
80 |
1000 |
45 |
18.0 |
|
0113 |
SKL-80GA |
80 |
1200 |
48 |
18.0 |
Uses: Apply to sag adjusting and tensioning on overhead line construction.
Features: The clamp is forged of high strength aluminum alloy with small and light unit weight.
Specification:
1. Product has safety latch with "G" symbol in the "Model No.";
2. Product has safety latch can achieve 3 times of rated load tensile testing without wire damage. It is most suitable for
the line construction by transmission and transformation facilities company;
3. Other specification of conductor clamp can customized according to customers' requirements.
High Quality Forging High Quality Machining Operation Strict Testing Processes
