Product Details:
|
| Maximum Linepull (kN): | 220 | Continuous Linepull (kN): | 200 |
|---|---|---|---|
| Maximum Linespeed (km/h): | 5 | Bullwheel Grooves Number: | 10 |
| Dimensions (mm): | 5700×2300×2600 | Weight (kg): | 8000 |
| MOQ: | 1 Set | ||
| Highlight: | wire pulling tools,conductor stringing equipment |
||

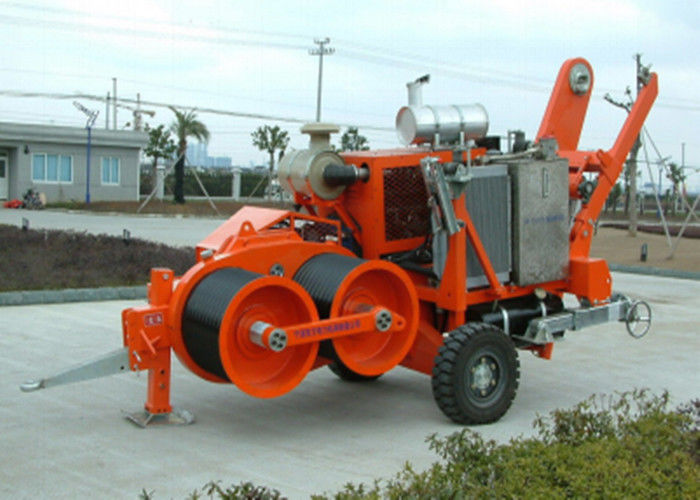

Cable Stringing Equipment Hydraulic Cable Puller Winch 220KN Capacity
Application

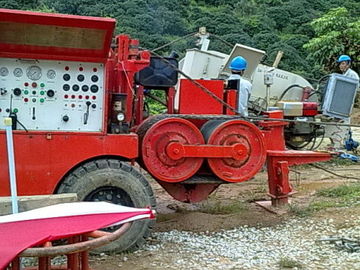

SA-YQ220 Overhead stringing equipment hydraulic capstan winch cable puller is applicable to release wire, ground wire, cable in transmission line project.Together with tension machine, this model allows for the tension stringing of 220kV lines in mountainous and hilly areas and can be used for the traction stringing of OPGW or ADSS cable in various terrains.
Features
1.Infinitely variable speed and line control, the pull in the rope can be read on the line pull gauge.
2.The max pull for conductor-stringing operation can preset,automatic overpull protection system.
3.Spring applied hydraulic release brake acts automatically in case of hydraulic failure to ensure safety.
4.Attached reel winder with automatically level wind.load and unload conveniently.
5.Hydraulic pullrope pinch device,replacing reel conveniently.
Main Specifications
| Model | SA-YQ220 Hydraulic Puller |
| Maximum Traction Force (kN) | 220 |
| Continuous Tractive Effort (kN) | 180 |
| Maximum Pulling Speed (km/h) | 5 |
| Bullwheel Bottom of Groove Diameter (mm) | Φ760 |
| Number of Bullwheel Grooves | 10 |
| Maximum Diameter of Suitable Steel Rope (mm) | Φ30 |
| Maximum Through Connector Diameter (mm) | Φ75 |
| Engine Power / Speed (kW/rpm) | 243/2100 |
| Dimensions (mm) | 5700× 2300× 2600 |
| Weight (kg) | 8000 |
Main Components
| Engine | Cummins (USA) water-cooled diesel engine |
| Main Variable Displacement Pump, Main Motor | Rexroth (BOSCH) |
| Reducer | Rexroth (BOSCH) |
| Main Hydraulic Valves | Rexroth (BOSCH) |
| Radiator | AKG |
| Hydraulic Instrument | |
| Suitable Drum | Model GSP1600 (Item number: 07125D) |
