Anti Twisting Galvanized Braided Wire Rope Non Rotating 1000 Meter Per Reel

Anti Twisting Galvanized Braided Wire Rope Non Rotating 1000 Meter Per Reel
Anti Twisting Galvanized Braided Wire Rope Non Rotating 1000 Meter Per Reel Anti Twisting Galvanized Braided Wire Rope Non Rotating 1000 Meter Per Reel

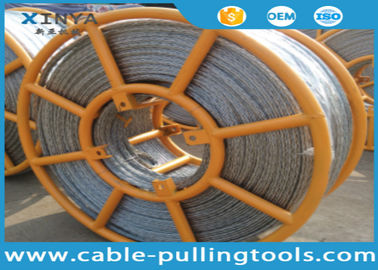

Large Image :  Anti Twisting Galvanized Braided Wire Rope Non Rotating 1000 Meter Per Reel

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO,CE
Model Number: HL
Payment & Shipping Terms:
Minimum Order Quantity: 1000 meters
Price: get latest price
Packaging Details: steel reel
Delivery Time: 15 workdays after payment
Payment Terms: L/C, T/T,
Supply Ability: 10000 meters/day

Anti Twisting Galvanized Braided Wire Rope Non Rotating 1000 Meter Per Reel

Description
Wire Gauge: 9mm-32mm Type: Galvanized
Material: Galvanized Steel Wire Structure: Hexagon 12 Strands 18 Strands
Feature: Non Rotating Length: 1000m/reel
High Light:

galvanised steel wire rope

,

non rotating wire rope

Anti Twisting Galvanized Braided Wire Rope Non Rotating 1000 Meter Per Reel



ISO9001:2008 certified.

CE approved.



Application

It is specially braided from galvanized steel wire and widely used as pilot rope in overhead power transmission line stringing operation.Anti-twisting braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.



Features

The rotation angle is zero,and the combined rotation  torque is also zero while it is bearing tension at free state .It is suitable to be used in various fields which require wire rope with no rotation .

The wire rope has fine flexibility with long using life .There is no twist and no tangling up when the tension released.  You can change the length and repair local damage by grafting ,which will not reduce the flexibility.  Hexagon is more suitable for puller, tensioner,winch,  hoisting etc .



Technical Data

 Model  Structure

Nominal

Dia

(mm)

Single

bundle

Dia

(mm)

 Ref

Weight

(kg/100m)



Breaking

Force(KN)

Standard

Length

(m)

HL9-12×19W Hexagon with 12 strands 9 2.0 26.69 55.0 1000
HL11-12×19W Hexagon with 12 strands 11 2.5 45.73 80.5 1000
HL13-12×19W Hexagon with 12 strands 13 3.0 57.96 120.0 1000
HL16-12×19W Hexagon with 12 strands 16 3.5 82.80 158.0 1000
HL18-12×19W Hexagon with 12 strands 18 4.0 103.82 210.0 1000
HL20-12×T25Fi Hexagon with 12 strands 20 4.5 129.62 250.0 800
HL22-12×T25Fi Hexagon with 12 strands 22 4.8 147.88 320.0 800
HL24-12×T25Fi Hexagon with 12 strands 24 5.0-5.2 160.23 360.0 800
HL26-12×T25Fi Hexagon with 12 strands 26 5.5-5.6 193.71 420.0 700
HL28-12×T29Fi Hexagon with 12 strands 28 6.0 230.50 480.0 500
HL30-12×T29Fi Hexagon with 12 strands 30 6.5 272.04 540.0 500
HL20-18×19W Hexagon with 18 strands 20 4.0 159.80 300.0 800
HL22-18×T25Fi Hexagon with 18 strands 22 4.2 189.80 389.0 800
HL24-18×T25Fi Hexagon with 18 strands 24 4.8 216.20 440.0 800
HL26-18×T25Fi Hexagon with 18 strands 26 5.2 276.80 480.0 700
HL28-18×T29Fi Hexagon with 18 strands 28 5.4 301.20 580.0 500
HL30-18×T29Fi Hexagon with 18 strands 30 5.6 361.60 658.0 500
HL32-18×T29Fi Hexagon with 18 strands 32 6.0 423.00 780.0 500

Note:

The single length of rope can be made according to your requirement.



Detailed Pictures

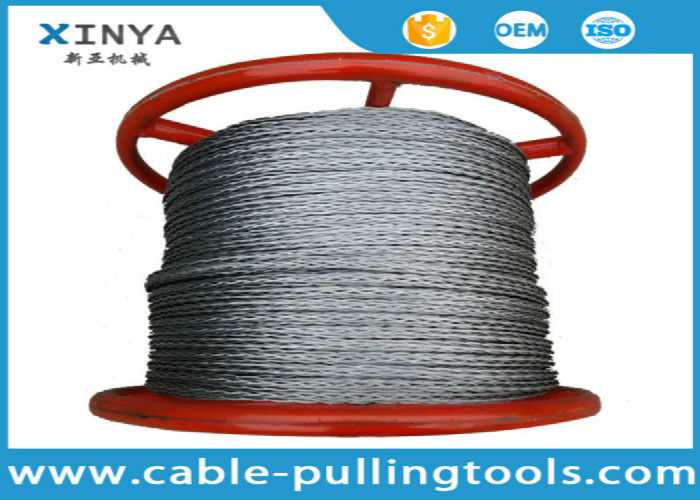

Anti Twisting Galvanized Braided Wire Rope Non Rotating 1000 Meter Per Reel 0
