Product Details:
|
Rated Pressure: | 750bar | Application: | Cable Compressor |
---|---|---|---|
Weight: | 40kg(without Hydraulic Oil) | Usage: | Crimp |
Type: | Hydraulic Crimping Head | Product Name: | High Pressure Hydraulic Cable Crimping Tool For ACSR Conductor With Honda Gasoline Pump |
Item: | Hydraulic Cable Crimping Tool | Pump: | HONDA Gasoline Pump |
Highlight: | hydraulic cable crimping tool,hydraulic wire cutter |
100T 125T High Pressure Hydraulic Cable Crimping Tool for ACSR Conductor With Honda Gasoline Pump
Application:
Motorized Hydraulic Compressor / Hydraulic press is used to join wire ends and strengthen damaged condcutor (restorative-repair).
Technical Data:
Superhigh Hydraulic Pump JYB80Q | |
Model | JYB80Q |
Engine Power | 5.5HP(3.4KW) HONDA GX160 Petrol engine |
Engine Rotational speed | 4000r/min |
Rated Press/Delivery Capacity | 750bar / 2.05L/min (High) |
90bar / 11.02L/min | |
Hydraulic Oil Model | 46# antiwear hydraulic oil |
Capacity of Hydraulic oil box | 8L |
Overall Dimension | 620×420×430mm |
Total Weight | 40kg(without hydraulic oil) |
Acting Style to the hydraulic cylinder | double acting |
Hydraulic reversal valve for middle position | M(up-hold-down) |
Oil Hose standard length: 10 m/pc * 2pcs
Note:
Length of oil hose can be made as per your requirement.

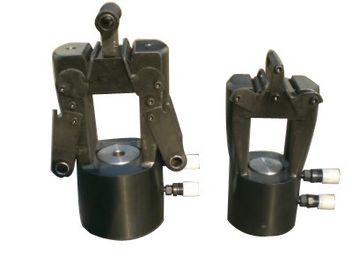

Hydraulic compression head HP-100W:
Output pressure:100 tons
Rated working pressure:750bar;
Stroke:22mm
Weight:33kgs
Hydraulic compression head HP-200W:
Output pressure:200 tons
Rated working pressure:750bar;
Stroke:40mm
Weight:90kgs
Hydraulic compression head QY125:
Max output pressure:125 tons;
Rated working pressure:750bar;
Stroke:34mm;
Weight:60Kg;
Hydraulic compression head HJC200:
Max output:200 tons;
Rated working pressure:750bar;
Stroke: 40mm;
Weight:86Kg;
