Product Details:
|
Weight: | 1.9 - 2.5KG | Usage: | Stringing |
---|---|---|---|
Type: | Pulley Block | Application: | Stringing |
Material: | Nylon And Aluminum | Rated Load: | 5- 20 KN |
Highlight: | block and tackle hoist,wire rope pulley block |

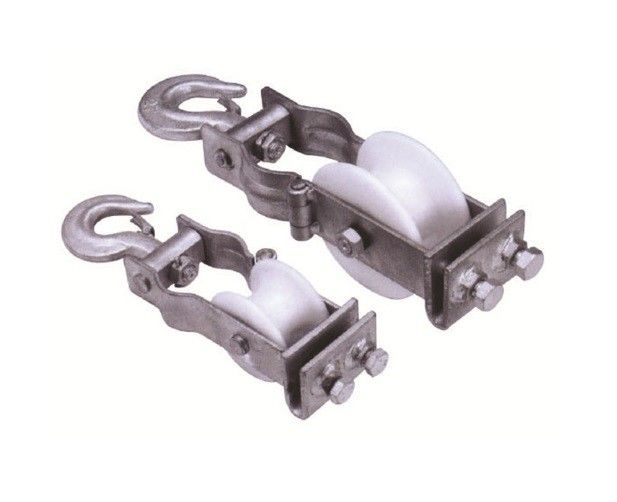

Transmission Line Stringing Tools Conductor Stringing Pulley Block for Aerial Cable
Use and Characteristics:
Suit for middle and small section wire expand.
About to hang pay-off pulley, also can be face to pay-off pulley.
1)sheave:Nylon/ Al;
2)Material quality:stainless
3)Rated load:0.5Ton,1Ton;2Ton
To put aluminum wire, steel core aluminum strandes wire, insulated wire delay in pole and tower
Cable roller wheel groove can be through a lamp pipe, aluminum casing, connector etc.
The material is divided into aluminum alloy and MC nylon.
Pulley pendant divided into joint plate and hook type.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Our Values
1 Take First-Class Quality as Target and First-class Service.
2 As Responsibility, To Succeed By Scientific Management.
3 Customer in Heart, Quality in Hand, Technology in the Lead.
Technical specification below for your reference:
Product No. | Model Type | Outside Dia * Width(mm) | Rated Load(KN) | Weight(kg) | Material |
80357 | SHC-0.5A | Φ80*50 | 5 | 1.9 | Aluminum |
80358 | SHC-0.5B | Φ120*30 | 5 | 2.1 | Aluminum |
80359 | SHC-1A | Φ160*40 | 10 | 2.5 | Aluminum |
80360 | SHC-2B | Φ120*58 | 20 | 3.5 | Aluminum |
80361 | SHCN-0.5A | Φ80*50 | 5 | 1.4 | Nylon |
80362 | SHCN-0.5B | Φ120*30 | 5 | 1.6 | Nylon |
80363 | SHCN-1A | Φ160*40 | 10 | 2 | Nylon |
80364 | SHCN-2B | Φ120*58 | 20 | 2.5 | Nylon |
