| Brand Name: | XINYA |
| Model Number: | HT |
| MOQ: | 10 Pair/Pairs |
| Price: | USD10-40/Pair |
| Delivery Time: | 7 workdays after payment |
| Payment Terms: | L/C, T/T, |

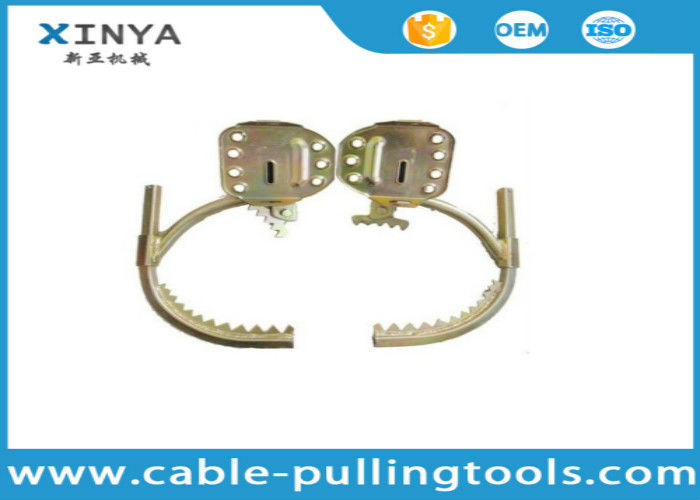

Safety Tools HT350 Electrical Pole Climber Max 350mm pole with teeth
Application
It is used to climb the wood pole.
Features
1 Special heat treatment
2 Weight:3.0-3.5kg
4 Easy operating
5 High quality and best price
Production assurance description
1. Our climbers are produced according to local standard design and organizations ,
we will responsible for all quality problem for half year if the products are under normal use.
2. The following conditions are not in the scope of quality assurance:
Deformation caused by stressing application not according to the stated testing load.
Corrosion caused by being affected with damp.Lack of nameplate, date of manufacture or test lot No.
3. storage,The climbers should be stored in the well ventilated place and you should keep it from corrosion.
Technical Data
|
Model |
HT300 |
HT350 |
HT400 |
HT450 |
|
The biggest opening distance(mm) |
300 |
350 |
400 |
450 |
|
Weight (kg) |
3.0-3.5 |
3.0-3.5 |
3.0-3.5 |
3.0-3.5 |
|
Outer diameter of cement rod(mm) |
Φ190-Φ300 |
Φ250-Φ350 |
Φ250-Φ400 |
Φ250-Φ400 |
|
Rated load(KN) |
1.00 |
1.00 |
1.00 |
1.00 |
|
Testing load(KN) |
1.65 |
1.65 |
1.65 |
1.65 |
|
Overload(KN) |
2.25 |
2.25 |
2.25 |
2.25 |
|
Testing time(min) |
5 |
5 |
5 |
5 |
|
Remarks |
For 8m wood pole |
For 10-12m wood pole |
For 15m wood pole |
For 18m wood pole |
