Product Details:
|
| Rod Diameter: | 4-16mm | Length Of Pulling Rod: | 50-300M |
|---|---|---|---|
| Rod Outer: | High Density Polyethylene Coating | Iron Frame: | Steel With High-temperature Sprayed Plastic Or Spray Coating |
| Type: | Fiber Snake Duct Rodder | Selling Point: | Cable Laying Equipment |
| High Light: | cable laying equipment,cable drum trailer |
||

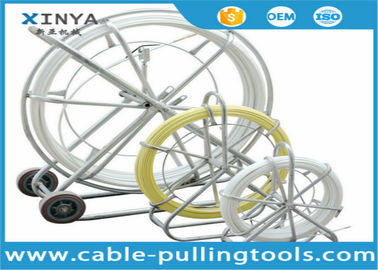

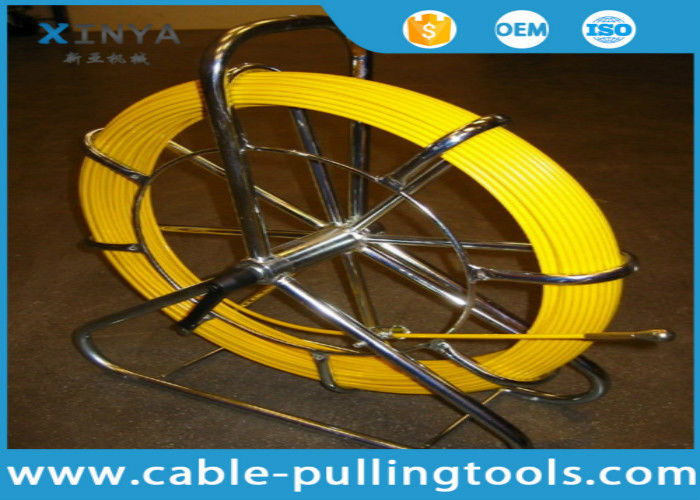

Light Weight Portable Fiberglass Push Pull Rods Fiber Snake Duct Rodder 6mm
Brief Introduction
Fiberglass duct rodders or push rodders and commonly called python rod
by its nature passing through under ground ducts by ups, down negotiating the duct curvature
thus very convenient to pull the cables , wires inside the duct ,
also it can be used to locate the duct block or damage portion identifications .
it has high safety aspects to use underground applications
because of its non conductivity of electricity, sets a major safety to site workers .
It has been built with rigid sturdy steel tubular fabrication for easy usage at site
and can be self coiled in the tubular frame and easily roll like trolley on ground by itswheels fitted at bottom .
The ducts rodders normally comes in various diameters from 4.5 mm to 18 mm as per ground applications.
Normally 10 mm dia FRP rodders used for pulling, cleaning and locating blocks in Fiber optic Cable network applications.
Application
1. Used to install pulling ropes and winch ropes into ducts,ready for cable pulling operations.
2. Available push pull rodder
3. With cable roller
4. Lightweight and non-conductive
Features
1. Strong non-conductive fiberglass rod construction
2. Stainless steel drawing head
3. For longer conduit runs and underground duct
4. Rugged tubular steel reel with adjustable position.
5. Feed device allows rod to feed out or be wound back onto reel with easy pushi or pull of rod
Technical Data
|
Specification |
Rod Diameter (mm) |
Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16 |
|
Rod Length (m) |
30~500 |
|
|
Frame Spec.(mm) |
1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc |
|
|
Wheel Diameter(mm) |
300mm |
|
|
Wall thickness of Metal Frame |
2.2mm |
|
|
Color |
blue, yellow, red, white etc |
|
|
Material |
Rod Inner |
Extruded by fiber glass and high strength resin at high temperature |
|
Rod Outer |
High Density polyethylene coating |
|
|
Iron Frame |
Steel with high-temperature sprayed plastic or Spray coating |
|
|
Wheel |
rubber |
|
|
Brake |
Yes |
|
|
Drawing head |
copper |
|
|
Physical Characters |
Density |
55g/m |
|
Working temperature |
-40°C to +80°C |
|
|
Breaking tension |
100kg |
|
|
Bending Radius |
295mm |
|
|
Technology |
Pultrusion |
|
|
Packaging |
Inside |
plastic woven strip wind around the frame |
|
Outside |
Wooden pallet and Wooden box |
Structure
Size
Application
