Product Details:
|
| Power Source: | Electric Engine | Pulling Speed(m/min): | 6/8 |
|---|---|---|---|
| Capacity: | 1KN | Rubber Sheet Thickness: | 25mm |
| Application: | Cable Laying | Cable Diameter: | 30-180mm/30-200mm |
| High Light: | cable laying equipment,cable tower machine |
||

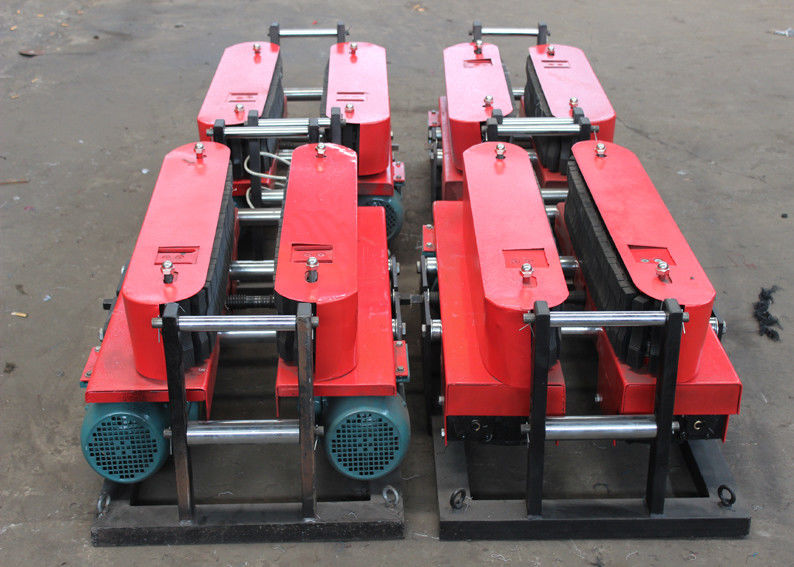

Underground Cable Tools Electric Power Cable Roller Laying Equipment
Application
DSJ Cable Laying Equipment , we manufactured, is the ideal machine of cable transmission used
in power,
petroleum, chemical, industrial construction, power plant extension, substation and city network
transmission cable.
It is suitable for cable trays in any form of channel, cable pipe, conveying a variety of power cable and
control cable.
Features
Using this kind of this device changes the manual transmission cable. It can save a lot of labor, improve working conditions,
reduce labor intensity, improve work efficiency and ensure the safety.
Technical Data
| Model Type | DSJ-150 | DSJ-180 |
| Line pulling(KGS) | 700 | 900 |
| Pulling Speed(m/min) | 8 | 6 |
| Electric motor | 1.1KW *2 | 1.5KW * 2 |
| Oversize dimension | 950*500*400 | 1020*590*400 |
| Weight(KGS) | 150 | 180-200 |
| Cable diameter | Φ30 - 180 mm | Φ30 - 200 mm |
| Transimission | I=45 | I=60 |
| Rubber sheet thickness | 25mm | 25mm |
Practical Application
