Product Details:
|
| Usage: | Tightenning | Application: | Adjust Sag |
|---|---|---|---|
| Material: | Tight Wire | Type: | Wire Rope Clip, Wire Grip |
| Rated Load: | 40KN | Max Opening: | 32mm |
| High Light: | wire rope pulley block,cable hoist puller,Conductor Wire Self Gripping Clamps |
||

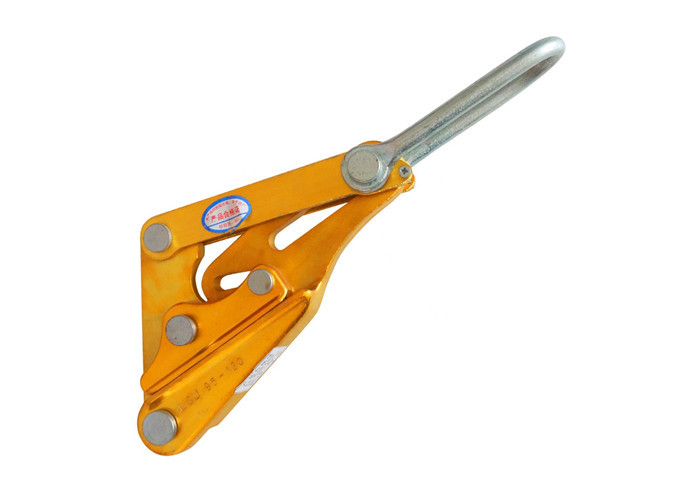

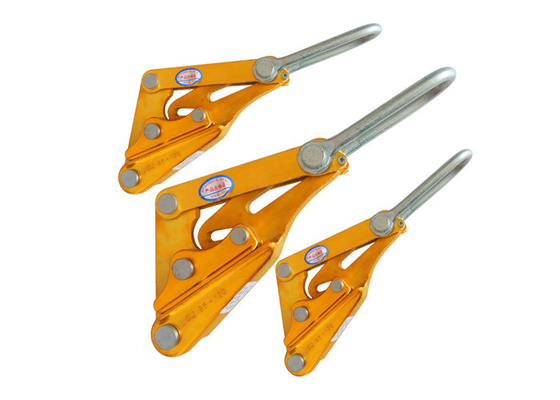

Conductor Wire Self Gripping Come along Clamps Cable Grips 300-400mm2
Quick details:
1. Transmission Line Stringing Equipment Accessories & Tools
2. Self Gripping Clamps
3. Rated Load: 70kN
4. Conductor size: 300~400mm2
5. Weight: 4.0kgs
Application
Aluminum alloy conductor gripper,cable wire grips for different conductors is applied to adjusting sag in erecting wire and sagging.

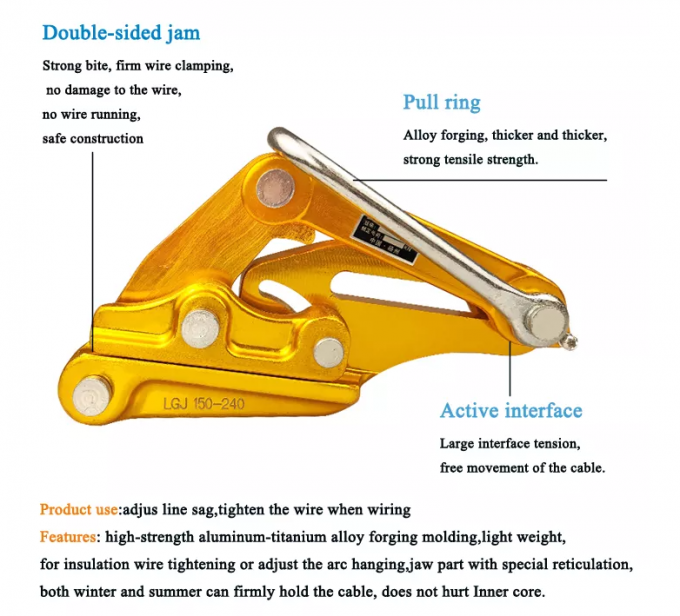

Feature
The product is forged of high strength aluminum alloy, compact and light weight.
Description
The self gripping clamps can be use to anchor and to string conductor (aluminum, ACSR, copper...) and steel rope. The body is made of high strength hot forged steel or Aluminum, in order to minimize the ratio between weight and working load.
Specification
| Model | Conductor size (mm2) | Rated load (kN) | Max. opening (mm) | Weight (kg) | Material |
| SK-10 | 25~70 | 10 | 14 | 1.6 | Steel |
| SK-15 | 95~120 | 15 | 17 | 2.5 | Steel |
| SK-25 | 150~240 | 25 | 23 | 3.8 | Steel |
| SKL-7 | 25~70 | 7 | 14 | 1.0 | Aluminum |
| SKL-15 | 95~120 | 15 | 18 | 1.4 | Aluminum |
| SKL-25 | 150~240 | 25 | 24 | 3.0 | Aluminum |
| SKL-40 | 300~400 | 40 | 32 | 4.0 | Aluminum |
| SKL-50 | 500-630 | 50 | 36 | 6.6 | Aluminum |
| SKL-40G | 400 | 40 | 32 | 4.3 | Aluminum |
| SKL-50G | 500 | 50 | 34 | 7.0 | Aluminum |
| SKL-50GA | 630 | 50 | 36 | 7.3 | Aluminum |
| SKL-60G | 720 | 60 | 38 | 9.2 | Aluminum |
| SKL-70G | 900 | 70 | 42 | 14 | Aluminum |
| SKL-80G | 1000 | 80 | 45 | 18 | Aluminum |
| SKL-80GA | 1200 | 80 | 48 | 18 | Aluminum |
