Product Details:
|
| Application: | Power Construction | Weight: | 40kg |
|---|---|---|---|
| Usage: | Crimp | Type: | Hydraulic Crimping Head |
| Max Compression Force (kN): | 1250 | Rated Pressure (kN): | 94 |
| Conductor Size (mm): | Conductor Size (mm) | Max Stroke (mm): | 25 |
| Highlight: | hydraulic wire cutter,hydraulic crimp tool |
||
Quick details:
1. Transmission Line Stringing Equipment Accessories & Tools

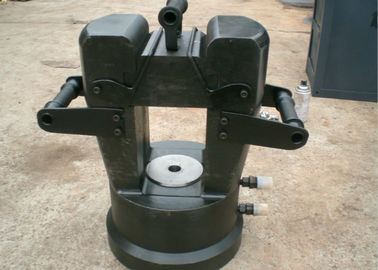

2. Hydraulic compressor for overhead conductor
3. Max compression force: 1250kN
4. Conductor size: ≤720
5. Aluminum dies: 26~60mm Steel Dies: 12~26mm
6. With Gasoline pump, Max force: 100Mpa
Description:
The hydraulic compressors, mainly implemented in press forged steel, have the following characteristics: excellent weight/power ratio; very short pressing cycle (all the presses have an hydraulically-driven piston release); each power unit or manual hydraulic pump (and hoses) is interchangeable with any hydraulic press.
Specification:
|
For compressor, QY-35 work with hand pump or Single-tube electric pump; QY-65, QY-125, QY-200 work with hydraulic pump. |
|||||
|
Model |
Max compression force (kN) |
Rated pressure (kN) |
Conductor size (mm) |
Max stroke (mm) |
Weight (kg) |
|
QY-35 |
350 |
70 |
≤240 |
25 |
12 |
|
QY-65 |
650 |
94 |
≤500 |
25 |
25 |
|
QY-125 |
1250 |
94 |
≤720 |
25 |
40 |
|
QY-200 |
2000 |
94 |
≤1440 |
25 |
85 |
|
For Die |
||||
|
Model |
Compressor model |
Aluminum Dies |
Steel Dies |
Copper Dies |
|
QYD-35 |
QY-35 |
16/18/20/22/24/26/30/32/34/36 |
|
16~500mm2 |
|
QYD-65 |
QY-65 |
26/28/30/32/34/36/38/40/45/50 |
12/14/16/18/20/22/24/26 |
16~800mm2 |
|
QYD-125 |
QY-125 |
26/28/30/32/34/36/38/40/45/50 |
12/14/16/18/20/22/24/26 |
16~800mm2 |
|
QYD-200 |
QY-200 |
26/28/30/32/34/36/38/40/45/50 |
12/14/16/18/20/22/24/26 |
16~800mm2 |
|

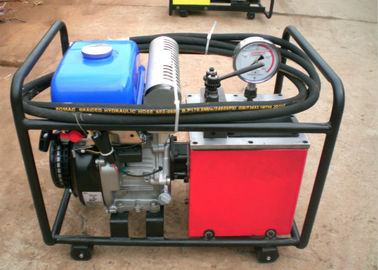

For Gasoline pump |
||||||
|
Model |
Max compression force |
Rated pressure |
Flow |
Gasoline volume |
Power |
Weight |
|
YB-100 |
100Mpa |
80kN |
1.6L/min |
8L |
4hp |
83kg |
