Frame Style High Quality Aluminum Alloy Inner Suspend Mast Gin Pole for Tower Erection and Power Construction

Brand Name:	XINYA
Model Number:	LBN
MOQ:	1 Unit
Price:	Get Latest Price
Delivery Time:	Within 15 days after payment
Payment Terms:	L/C,T/T,

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO

Place Of Origin:

Jiangsu, China (Mainland)

Application:

Power Construction, Power Construction

Carrying Capacity(KN):

13-43

Weight(kg):

70-200

Item:

Frame Style High Quality Aluminum Alloy Inner Suspend Mast Gin Pole For Tower Erection

Packaging Details:

standard export wooden case or according to your requests

Highlight:

gin poles

steel erection tools

Product Description

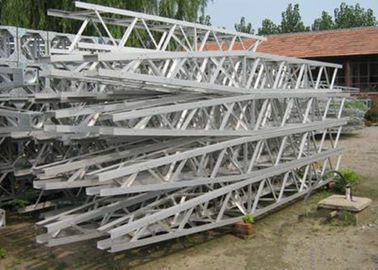

Frame Style High Quality Aluminum Alloy Inner Suspend Mast Gin Pole for Tower Erection

Overview of Aluminum Alloy Inner Suspend Mast Gin Pole

The Frame Style High Quality Aluminum Alloy Inner Suspend Mast Gin Pole is a specialized lifting and hoisting tool used in tower erection, transmission line stringing, and power construction projects. Designed with a frame-style structure and made from durable aluminum alloy, this gin pole provides excellent load-bearing capacity while remaining lightweight and portable, making it an ideal choice for fieldwork.

Definition of Aluminum Alloy Inner Suspend Mast Gin Pole

An Aluminum Alloy Inner Suspend Mast Gin Pole is a portable lifting device with an inner suspend structure, which allows the mast to securely hang and stabilize loads during lifting operations. The frame style enhances strength and balance, while the aluminum alloy ensures both durability and reduced weight, allowing safe and efficient tower erection.

Features of Aluminum Alloy Inner Suspend Mast Gin Pole

Material: Manufactured from high-strength aluminum alloy for lightweight handling and corrosion resistance.
Frame Style Design: Provides structural stability and reduces swaying during operation.
Inner Suspend Mechanism: Ensures balanced lifting and improved safety.
Portability: Easy to transport, assemble, and disassemble on site.
Versatility: Compatible with winches, pulleys, and other lifting devices.

Advantages of Aluminum Alloy Inner Suspend Mast Gin Pole

Lightweight & Strong: Easier to carry compared with steel poles, without compromising strength.
Corrosion Resistant: Suitable for long-term outdoor use, even in humid or coastal areas.
Efficient Lifting: Stable frame style design improves operational efficiency and reduces risks.
Time-Saving: Quick installation and dismantling make it convenient for field projects.
Safe Operation: Secure suspension system ensures reliable performance during heavy-duty lifting.

Applications of Aluminum Alloy Inner Suspend Mast Gin Pole

The Frame Style Aluminum Alloy Inner Suspend Gin Pole is widely used in:

Tower erection projects for power transmission and telecommunication.
Overhead line stringing to lift conductors, insulators, and cross arms.
Power construction works for hoisting heavy components.
Engineering lifting tasks requiring stable and portable lifting equipment.

Technical Data

Product NO.	Type NO.	Cross section(mm)	Carrying capacity(KN)	Weight(kg)
80508	LBN-10	250*250	20	70
80509	LBN-11	250*250	19	75
80510	LBN-12	250*250	16	80
80511	LBN-13	250*250	13	85
80512	LBN-11	300*300	29	110
80513	LBN-12	300*300	24	115
80514	LBN-13	300*300	22	120
80515	LBN-14	300*300	18	125
80516	LBN-15	300*300	16	130
80517	LBN-11	350*350	40	120
80518	LBN-12	350*350	33	125
80519	LBN-13	350*350	30	130
80520	LBN-14	350*350	24	135
80521	LBN-15	350*350	21	140
80522	LBN-12	400*400	43	155
80523	LBN-13	400*400	38	160
80524	LBN-14	400*400	32	165
80525	LBN-15	400*400	28	170
80256	LBN-16	400*400	25	180
80527	LBN-17	400*400	22	185
80528	LBN-18	400*400	19	190
80529	LBN-19	400*400	16	195
80530	LBN-20	400*400	14	200

FAQ about Aluminum Alloy Inner Suspend Mast Gin Pole

Q1: What is the typical load capacity of this gin pole?

A1: Load capacity depends on the model, but all are designed for heavy-duty lifting in tower erection and line construction.

Q2: Why use aluminum alloy instead of steel?

A2: Aluminum alloy is lighter, easier to handle, and corrosion-resistant, while still providing high strength.

Q3: Can this gin pole be used in coastal or rainy environments?

A3: Yes, its anti-rust aluminum alloy structure makes it ideal for outdoor and coastal projects.

Q4: Is the frame style gin pole easy to assemble?

A4: Yes, the modular design ensures quick setup and dismantling, saving time on site.

How to Use Our Aluminum Alloy Inner Suspend Mast Gin Pole

Prepare the Site: Ensure the working area is stable and secure.
Assemble the Frame: Set up the frame-style gin pole according to the manual.
Secure the Mast: Fix the inner suspend mast firmly, checking stability before operation.
Attach Lifting Devices: Connect pulleys, winches, or hoisting ropes to the gin pole head.
Lift the Load: Operate steadily, ensuring the load remains balanced during lifting.
Safety Check: Monitor the lifting process continuously and never exceed rated load capacity.

By selecting our Frame Style High Quality Aluminum Alloy Inner Suspend Mast Gin Pole, you get a safe, efficient, and reliable lifting solution tailored for tower erection and power line construction projects.
