|Composition:||Hexagon With 12 Strands Or 18 Strands||Diameter:||9-32MM|
|Item:||Anti Twisted Pilot Rope||Warranty:||1 Year|
rotation resistant wire rope,
non rotating wire rope

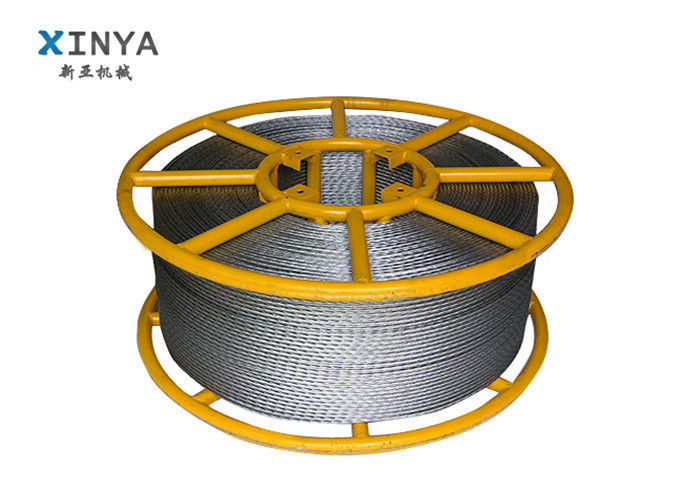

Hexagon Anti Twisted Pilot Rope Galvanised Steel Wire Rope With 12 Strands
It is specially braided from galvanized steel wire and widely used as pilot rope in overhead power transmission line stringing operation.
The rotation angle is zero,and the combined rotation torque is also zero while it is bearing tension at free state .It is suitable to be used in various fields which require wire rope with no rotation .
The wire rope has fine flexibility with long using life .There is no twist and no tangling up when the tension released. You can change the length and repair local damage by grafting ,which will not reduce the flexibility.
Hexagon is more suitable for puller, tensioner,winch, hoisting etc .

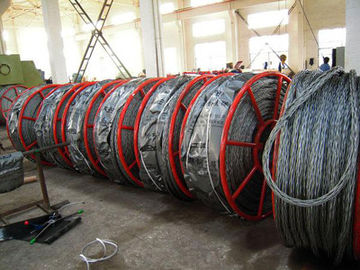

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality
1, Take First-Class Quality as Target and First-class Service.
2, As Responsibility, To Succeed By Scientific Management.
3, Customer in Heart, Quality in Hand, Technology in the Lead.
|HL9-12×19W||Hexagon with 12 strands||9||2.0||26.69||55.0||1000|
|HL11-12×19W||Hexagon with 12 strands||11||2.5||45.73||80.5||1000|
|HL13-12×19W||Hexagon with 12 strands||13||3.0||57.96||120.0||1000|
|HL16-12×19W||Hexagon with 12 strands||16||3.5||82.80||158.0||1000|
|HL18-12×19W||Hexagon with 12 strands||18||4.0||103.82||210.0||1000|
|HL20-12×T25Fi||Hexagon with 12 strands||20||4.5||129.62||250.0||800|
|HL22-12×T25Fi||Hexagon with 12 strands||22||4.8||147.88||320.0||800|
|HL24-12×T25Fi||Hexagon with 12 strands||24||5.0-5.2||160.23||360.0||800|
|HL26-12×T25Fi||Hexagon with 12 strands||26||5.5-5.6||193.71||420.0||700|
|HL28-12×T29Fi||Hexagon with 12 strands||28||6.0||230.50||480.0||500|
|HL30-12×T29Fi||Hexagon with 12 strands||30||6.5||272.04||540.0||500|
|HL20-18×19W||Hexagon with 18 strands||20||4.0||159.80||300.0||800|
|HL22-18×T25Fi||Hexagon with 18 strands||22||4.2||189.80||389.0||800|
|HL24-18×T25Fi||Hexagon with 18 strands||24||4.8||216.20||440.0||800|
|HL26-18×T25Fi||Hexagon with 18 strands||26||5.2||276.80||480.0||700|
|HL28-18×T29Fi||Hexagon with 18 strands||28||5.4||301.20||580.0||500|
|HL30-18×T29Fi||Hexagon with 18 strands||30||5.6||361.60||658.0||500|
|HL32-18×T29Fi||Hexagon with 18 strands||32||6.0||423.00||780.0||500|
The single length of rope can be made according to your requirement.
