916mm Diameter Single Sheave Pulley Block with 50-180 KN Rated Load and MC Nylon Material for Conductor Installation

916mm Diameter Single Sheave Pulley Block with 50-180 KN Rated Load and MC Nylon Material for Conductor Installation

Brand Name:	XINYA
Model Number:	SHD-508X75
MOQ:	5 pieces
Price:	Get Latest Price
Delivery Time:	ten days after payment
Payment Terms:	L/C,T/T,

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO

Rated Load:

50-180 KN

Groove Dia:

800 Mm

Pulley Material:

MC Nylon

Sheave Width:

110 Mm

Outside Dia:

916 Mm

Usage:

Stringing

Item:

Stringing Machine Series 916mm Diameter Single Sheave Pulley Block For Conductor Installation

Packaging Details:

standard carton or according to your requirements

Supply Ability:

1000 piece/pieces per month

Highlight:

wire rope pulley block

cable hoist puller

Product Description

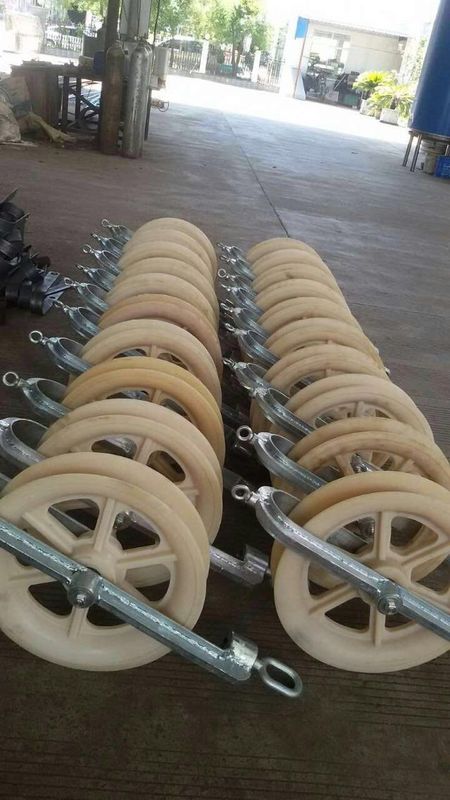

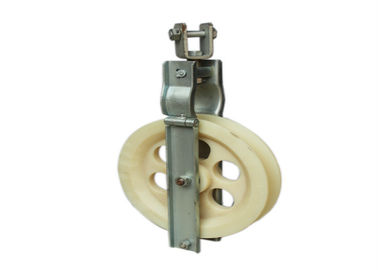

Stringing Machine Series 916mm Diameter Single Sheave Pulley Block for Conductor Installation

Overview

The Stringing Machine Series 916mm Diameter Single Sheave Pulley Block is a vital tool used in overhead power line construction and conductor installation. Designed for smooth cable or conductor passage, this stringing pulley block ensures safety, efficiency, and stability during the stringing process. With a robust structure and precision-engineered sheave, it helps reduce conductor damage and friction loss during long-distance stringing operations.

Definition

A Single Sheave Stringing Pulley Block is a mechanical device used with stringing machines and tensioners to guide and support conductors or OPGW (Optical Ground Wire) during overhead line installation. The 916mm pulley diameter accommodates large-size conductors and ensures smooth running, even under high tension or heavy loads. It is an essential component in transmission line stringing equipment for electric power, communication, and railway electrification projects.

Features

High-Strength Material: The pulley frame is made of aluminum alloy or galvanized steel, providing lightweight durability and corrosion resistance.
Precision-Machined Sheave: The nylon or aluminum sheave offers excellent wear resistance and smooth rotation, minimizing conductor abrasion.
Sealed Ball Bearings: Ensure stable operation and long service life under tough field conditions.
Hook or Clevis Type Fittings: Suitable for various stringing configurations with hydraulic pullers and tensioners.
Safety Lock Design: Prevents accidental conductor release during installation.

Advantages

Smooth and Reliable Conductor Stringing: Reduces friction and prevents damage to expensive conductors and OPGW cables.
High Load Capacity: Engineered for heavy-duty transmission projects, ensuring performance under demanding field conditions.
Easy Handling and Installation: Lightweight yet strong, convenient for line workers to carry and mount.
Customizable Options: Available in different sheave materials, diameters, and configurations to match specific line stringing needs.
Cost-Effective and Long-Lasting: Offers long-term performance with minimal maintenance.

Application Fields

Overhead Transmission Line Construction
OPGW and ADSS Fiber Cable Stringing
Electrical Power Distribution Projects
Communication Cable Installation
Railway Electrification and Utility Pole Projects

Whether used with a hydraulic puller, tensioner, or stringing machine, this pulley block ensures safe, efficient, and precise conductor installation.

Technical Data

Product No.	Model Type	Rated Load(KN)	Applicable Conductor ACSR(mm2)	Weight(kg)	Sheave No.	Outside DiaGroove DiaSheave Width(mm)
80328	SHDN-916*110	50	≤ 800	51	1	Φ916Φ800110
80329	SHSQN-916*110	75	120	3	1	Φ916Φ800110
80330	SHWQN-916*110	150	200	5	1	Φ916Φ800110
80331	SHQQN-916*110	180	270	7	1	Φ916Φ800110

FAQ

Q1: What is the maximum conductor size this pulley block can handle?

A1: The 916mm pulley block is suitable for conductors up to LGJ500 or OPGW cables, depending on model specifications.

Q2: What materials are available for the sheave?

A2: We offer nylon (lightweight, corrosion-resistant) and aluminum alloy (high strength and wear resistance) options.

Q3: Can the pulley block be customized?

A3: Yes, customization for sheave material, frame type, connector fitting, and bearing style is available upon request.

Q4: How do I maintain the pulley block?

A4: Regularly check bearings, lubricate as needed, and ensure the frame is free from deformation or corrosion.

Q5: Is it compatible with all types of stringing machines?

A5: Yes, it is designed to work seamlessly with most hydraulic pullers and tensioners used in power line construction.
