Product Details:
|
| Usage: | Tightenning | Application: | Adjust Sag |
|---|---|---|---|
| Material: | Tight Wire | Type: | Self Gripping Clamps |
| Name: | Wire Grip Clamp | Warranty: | 1 Year |
| High Light: | block and tackle hoist,wire rope pulley block |
||
Product Description
A device for gripping,pulling and tensioning of sheathed wire ropes, and metal rods,essy operation with safety.Excellent quality.
A device made in alloy for gripping,pulling and tensioning of sheathed wire ropes, cables ,earht or ground cable, cable stretcher and metal rods according to the wire diameter.
1. Material: Al or steel
2. Apply to Al, ACSR, Cu Conductor
3. Size: 25~1120mm2
4. Rated load 7~80kN

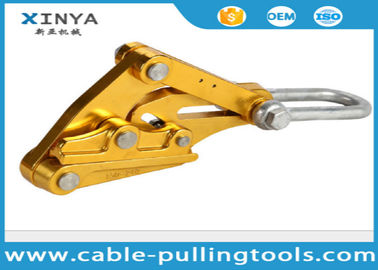

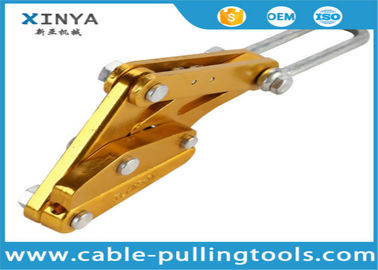

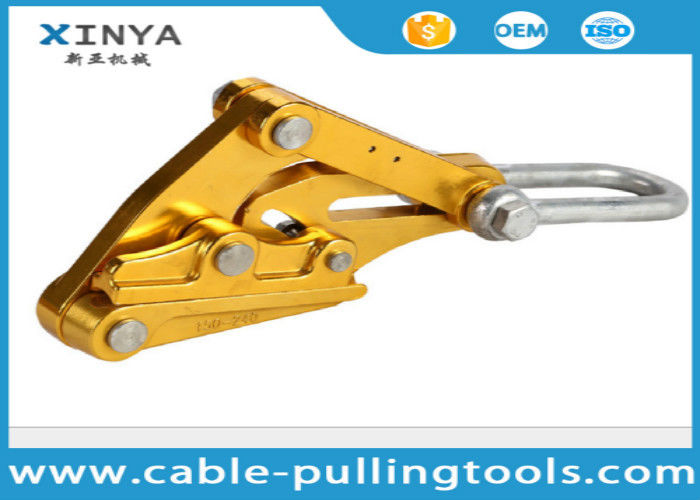

The self gripping clamps can be use to anchor and to string conductor (aluminum, ACSR, copper...) and steel rope.
The body is made of high strength hot forged steel or Aluminum, in order to minimize the ratio between weight and working load.
Technical Data
|
For Conductor |
||||
|
Model |
Conductor size (mm2) |
Rated load (kN) |
Max. opening (mm) |
Weight (kg) |
|
SKL-7 |
25~70 |
7 |
14 |
1.0 |
|
SKL-15 |
95~120 |
15 |
18 |
1.4 |
|
SKL-25 |
150~240 |
25 |
22.5 |
3.0 |
|
SKL-40 |
300~400 |
40 |
32 |
4.0 |
|
SKL-50A |
500 |
50 |
36 |
6.6 |
|
SKL-50B |
630 |
50 |
36 |
6.6 |
|
SKL-60 |
720 |
60 |
38 |
9.2 |
|
SKL-70 |
900 |
70 |
42 |
14 |
|
SKL-80 |
1000 |
80 |
45 |
18 |
|
SKL-80A |
1120 |
80 |
48 |
18 |
1. Sufficient support for our tendering representatives.
2. OEM service available based on official & legal authorization.
3. Strict quality control system.
4. Excellent quality with reasonable price.
5. Strong technical support (technical data, drawing, etc.)
If you are interested in our products, please provide us more specification, such as the number of core, nominal section area, conductor material(aluminum or copper) and usage. Then, We will send you our best quotation.
