| Brand Name: | XINYA |
| Model Number: | HL-400 |
| MOQ: | 1set |
| Price: | latest price |
| Delivery Time: | 7 workdays after payment |
| Payment Terms: | L/C,T/T, |

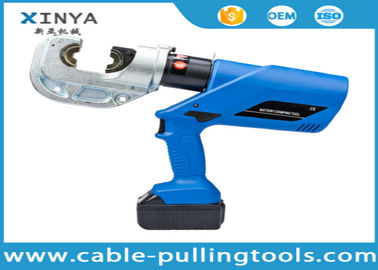

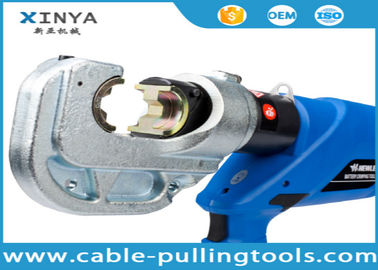

The HL-400 Mini Battery Powered Hydraulic Crimping Tool is a compact, high-efficiency electrical crimper designed for professional cable lug crimping from 16 to 400 mm². Powered by a rechargeable battery and equipped with a hydraulic system, it delivers consistent crimping force with minimal operator effort.
Its portable and cordless design makes it ideal for on-site electrical installation, power distribution projects, and maintenance work where mobility and efficiency are essential.
The HL-400 battery hydraulic crimper is a cordless electric crimping tool that uses hydraulic pressure generated by an electric motor to crimp copper and aluminum cable lugs. "Mini" refers to its compact size and lightweight structure, allowing easy handling while still covering a wide crimping range up to 400 mm².
| Crimping range | 16-400 mm² |
|---|---|
| Crimping force | 120 KN |
| Crimping type | Hexagon crimping |
| Stroke | 42 mm |
| Crimp charge | 170 times (Cu 150 mm²) |
| Crimping cycle | 10-15 s (depending on cable size) |
| Voltage | 18 V |
| Capacity | 3.0 Ah |
| Charging time | 1 hour |
| Package | Aluminum alloy case |
| Charging die | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 mm² |
| Accessories | Battery: 2 pcs Charger: 1 pcs |
