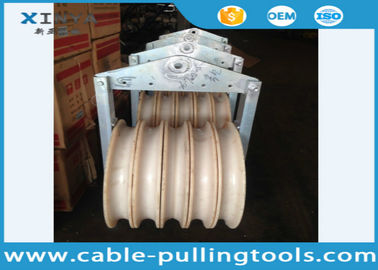

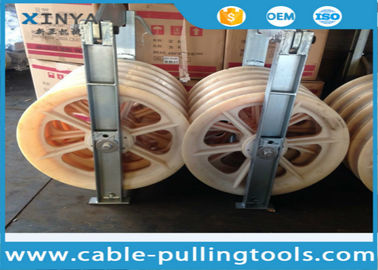

Five Nylon Wheels Diameter 660mm Bundled Conductor Pulley for Overhead Line Transmission

Five Nylon Wheels Diameter 660mm Bundled Conductor Pulley for Overhead Line Transmission
Five Nylon Wheels Diameter 660mm Bundled Conductor Pulley for Overhead Line Transmission Five Nylon Wheels Diameter 660mm Bundled Conductor Pulley for Overhead Line Transmission

Large Image :  Five Nylon Wheels Diameter 660mm Bundled Conductor Pulley for Overhead Line Transmission

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: SHWQN-660X100
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: 1000 sets per month
Delivery Time: 25-35 days
Payment Terms: L/C, T/T,

Five Nylon Wheels Diameter 660mm Bundled Conductor Pulley for Overhead Line Transmission

Description
Application: Stringing Pulley During Transmission Line Wheel Size: 660mm Diameter/100mm Width
Usage: Stringing Type: Stringing Pulley Block
Material: Nylon Selling Point: Large Diameter
Conductor Size (mm2): ≤500 Rated Load (kN): 60
Weight (kg): 110 Product Name: Five Nylon Wheels Diameter 660mm Bundled Conductor Pulley For Overhead Line Transmission
Highlight:

block and tackle hoist

,

cable hoist puller

Five Nylon Wheels Diameter 660mm Bundled Conductor Pulley for Overhead Line Transmission



Quick details
1. Transmission Line Stringing Accessories
2. Conductor/Cable/OPGW Bundled Conductor Pulley
3. Diameter: 660mm, Width: 100mm
4. Five Wheels Nylon Wheels Galvanized Steel Frame





Application and Features

It  is used to release the wire in the overhead transmission line.

And it can be used for single conductor, double split wire, four split wire, six split wire and so on.



Technical Data

Product No. Model Type Rated Load(KN) Applicable Conductor ACSR(mm2) Weight(kg) Sheave No. Outside Dia*Groove Dia* Sheave Width(mm)
80317 SHDN-660*100 20 ≤500 20 1 Φ660*Φ560*100
80320 SHSQN-660*100 40 85 3
80321 SHWQN-660*100 60 110 5
