20mm Heavy-Duty Double Braided Nylon Rope with 8200KG Breaking Strength for Industrial Pulling

20mm Heavy-Duty Double Braided Nylon Rope with 8200KG Breaking Strength for Industrial Pulling

Brand Name:	XINYA
Model Number:	N
MOQ:	500M
Payment Terms:	,L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Made in China

Certification:

ISO

Type:

Braided Rope

Diameter:

20mm

Breaking Strength:

8200kg

Structure:

Double Braided

Usage:

Construction

Packing:

Roll

Material:

Nylon Rope

Name:

20mm Double Braided Nylon Rope With Breaking Strength 8200KG For Pulling

Packaging Details:

Roll with Bag

Supply Ability:

10000M/Day

Highlight:

steel erection tools

lattice poles

Product Description

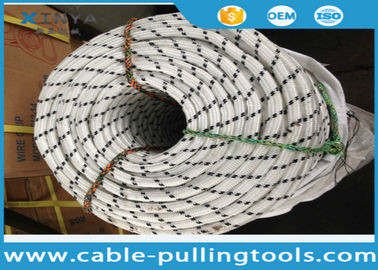

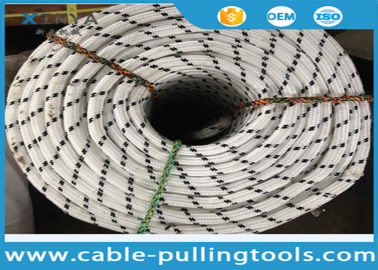

20mm Heavy-Duty Double Braided Nylon Rope – 8200KG Breaking Strength for Industrial Pulling

This 20mm Double Braided Nylon Rope with 8200KG breaking strength is engineered for maximum durability and performance in demanding industrial applications.

Product Overview

The 20mm Heavy-Duty Double Braided Nylon Rope is engineered for maximum strength and durability, with a breaking strength of 8200KG. Designed for industrial pulling, lifting, towing, and rigging applications, this rope provides reliable performance under extreme loads. Its double braided construction enhances flexibility, abrasion resistance, and long-term reliability, making it ideal for professional and heavy-duty operations.

Definition

A double braided nylon rope is a type of synthetic rope featuring an inner braided core and an outer braided sheath. This design offers superior strength, elasticity, and durability compared to single braided ropes. The rope's breaking strength of 8200KG ensures it can safely handle heavy loads in demanding environments.

Key Features

High Breaking Strength: 8200KG rated load for heavy-duty applications
20mm Diameter: Suitable for industrial-scale pulling and lifting tasks
Double Braided Construction: Inner core and outer sheath provide maximum strength and abrasion resistance
Durable Nylon Material: Resistant to wear, UV exposure, and moisture
Flexible and Lightweight: Easy to handle while maintaining heavy-duty performance

Advantages

Superior Strength: Handles extreme loads with high reliability
Enhanced Safety: Double braided structure reduces the risk of rope failure
Durability: Resistant to abrasion, chemicals, and outdoor elements
Versatility: Suitable for pulling, towing, lifting, rigging, and mooring
Ease of Use: Flexible and easy to tie, splice, or coil

Applications

Industrial pulling and lifting operations
Construction and rigging projects
Towing and hauling heavy equipment
Marine and boating mooring applications
Outdoor adventure and rescue operations

Technical Specifications

Diameter (mm)	Diameter (Inch)	Weight (kg/220M)	Breaking Strength - Polyester	Breaking Strength - Nylon
4	5/32	2.21	290kg	320kg
5	3/16	3.45	400kg	500kg
6	7/32	4.96	550kg	750kg
7	1/4	6.75	760kg	1000kg
8	5/16	8.82	1000kg	1300kg
9	11/32	11.16	1200kg	1700kg
10	3/8	13.78	1600kg	2000kg
12	1/2	19.85	2300kg	3000kg
14	9/16	27.01	3100kg	4000kg
16	5/8	35.28	4100kg	5300kg
18	3/4	44.66	5000kg	6700kg
20	13/16	55.13	6300kg	8200kg

Frequently Asked Questions

What is the breaking strength of this rope?

This 20mm double braided nylon rope has a breaking strength of 8200KG.

Is this rope suitable for outdoor use?

Yes, the nylon material is resistant to UV, moisture, and abrasion, making it suitable for outdoor environments.

Can it be used for lifting as well as pulling?

Yes, it is designed for both lifting and pulling heavy loads safely.

How flexible is the rope?

The double braided construction provides excellent flexibility while maintaining high strength.

Can it be spliced or knotted?

Yes, the rope can be easily spliced or knotted for rigging, towing, or lifting purposes.
