Product Details:
|
| Output(T): | 10 | Stroke(mm): | 170 |
|---|---|---|---|
| Bending Range (mm): | 1/4" To 1" | Thickness Of Pipe (mm): | 1-3.5 |
| Weight:approx(kg): | 17 | Pipe Moulds: | 1/4", 1/8", 3/8", 1/2", 3/4", 1" |
| High Light: | busbar bending machine,busbar punching machine |
||

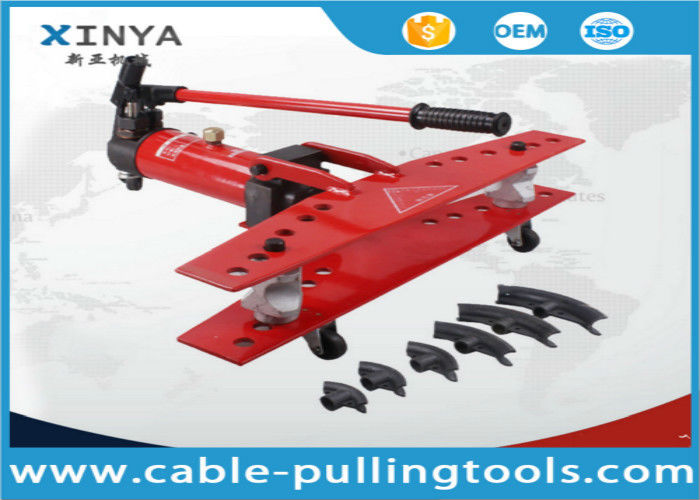

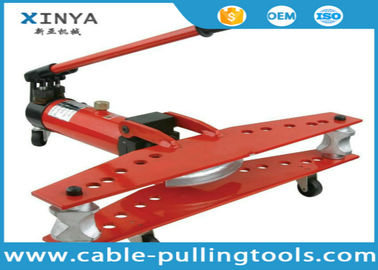

Manual Hydraulic Pipe Bender Pipe Bending Machine SWG-1 From 1/4" to 1"
Introduction
Hydraulic pipe bender is mainly used in electric power construction, railway construction,
laying and repaired, with function, reasonable structure, simple operation, mobile convenience,
fast installation, etc.
Features:
1 Manual hydraulic pipe bender is suit for common water pipe, wire pipe, thick-wall conduit tube, bending the angle with 90º.
2 1/2”-2” can be shaped 90º one time, for 2 1/2”-4”, pipe must be moved and bended for five times to the demanded radian.
Technical Data
| Item No. | SWG-1 | SWG-2 | SWG-3 | SWG-4 |
| Output(T) | 10 | 16 | 18 | 20 |
| Stroke(mm) | 170 | 250 | 320 | 415 |
| Bending range (mm) | 1/4"-1" | 1/2"-2" | 1/2"-3" | 1/2"-4" |
| Thickness of pipe (mm) | 1-3.5 | 2.75-4.5 | 2.75-4.5 | 2.75-6 |
| Weight:approx(kg) | 17 | 60 | 125 | 200 |
| Package | veneer box | veneer box | veneer box | veneer box |
| Weight of box | 2 | 6 | 8 | 13.5 |
| Pipe Moulds | 1/4", | 1/2", | 1/2", | 1/2", |
Quality control
1)Before the order can be confirmed finally,we would strictly check the material ,accessories of the sample step by step
2)We salesman ,also as a order follower,would trace every phase of production from the beginning
3)We have a QC team ,every product would be checked by them before packed
4)We would try our best to help clients solve problems when they occurred
5).Most of our products have passed TUV CE /GS ISO9001 certificate .
Payment terms
1)L/C at sight;
2)T/T:100% TT or 30% deposit by T/T,70% balance by T/T before shipment
Packing details
1)Plywood case or Wooden case
2)Packing method can be also changed according to the clients' special requirement.
