| Brand Name: | XINYA |
| Model Number: | FYQ-500 |
| MOQ: | 1set |
| Price: | USD50-80/set |
| Delivery Time: | 7 workdays after payment |
| Payment Terms: | L/C,T/T, |
| Parameter | Value |
|---|---|

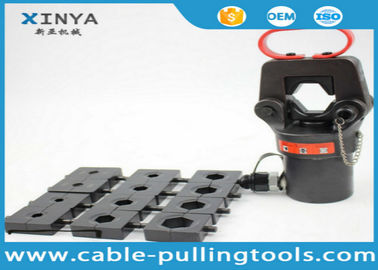

| Model | FYQ-500 |
| Type | Split Hydraulic Crimping Tool |
| Crimping Force | 13 Ton (130 kN) |
| Crimping Range | 16-500 mm² |
| Stroke | Approx. 20 mm |
| Operation | Hydraulic (with external pump) |
| Head Type | C-type / open head |
| Weight | Approx. 6-8 kg |
| Dies | 16-500 mm² standard set |
| Pump Type | Description |
|---|---|
| Manual Pump | Economical, suitable for small jobs |
| Electric Pump | High efficiency, recommended for project use |
| Battery Pump | Portable and convenient for field work |
| Feature | Benefit |
|---|---|
| Split design | Flexible and easy to use in limited space |
| High output force | Suitable for large size cable lugs |
| Stable hydraulic system | Reliable performance, no leakage |
| Precision dies | Clean and secure crimping |
| Heavy-duty structure | Long service life |
| Item | FYQ-500 Split Type | Integrated Type |
|---|---|---|
| Flexibility | High | Medium |
| Working Space | Suitable for narrow areas | Limited |
| Power Output | Higher | Lower |
| Efficiency | High (with electric pump) | Medium |
| Item | Details |
|---|---|
| Package | Wooden case / plastic case |
| Accessories | Full die set |
| Optional | Hydraulic pump, hose |
| Customization | Logo & packaging available |
| Item | Details |
|---|---|
| Lead Time | 7-15 working days |
| Trade Terms | EXW / FOB / CIF / DDP |
| Payment | T/T, L/C |
| Type | Crimping Range | Max Pressure | Max Travel | Accessories |
|---|---|---|---|---|
| FYQ-240 | 16-240mm² | 11T | 20mm | 16,25,35,50,70,95,120,150,185,240 |
| FYQ-300 | 16-300mm² | 11T | 20mm | 16,25,35,50,70,95,120,150,185,240,300 |
| FYQ-400 | 50-400mm² | 13T | 22mm | 50,70,95,120,150,185,240,300,400 |
| FYQ-500 | 50-500mm² | 13T | 22mm | 50,70,95,120,150,185,240,300,400,500 |
| FYQ-300A | 16-300mm² | 13T | 20mm | 16,25,35,50,70,95,120,150,185,240,300 |
| FYQ-400A | 50-400mm² | 13T | 22mm | 50,70,95,120,150,185,240,300,400 |
| EP-430H | 50-400mm² | 13T | 30mm | 50,70,95,120,150,185,240,300,400 |
| EP-510H | 50-400mm² | 13T | 38mm | 50,70,95,120,150,185,240,300,400 |
| FYQ-630 | 150-630mm² | 25T | 25mm | 150,185,240,300,400,500,630 |
| FYQ-630B | 150-630mm² | 25T | 25mm | 150,185,240,300,400,500,630 |
| FYQ-1000 | 300-1000mm² | 55T | 28mm | 300,400,500,630,800,1000 |
