Product Details:
|
| Item: | Universal Stringing Block Power Roller | Application: | Stringing Cable |
|---|---|---|---|
| Type: | Stringing Pulley Block | Wheel: | Aluminum |
| Rated Load: | 10KN | Weight: | 4.3kg |
| High Light: | wire rope pulley block,cable hoist puller |
||

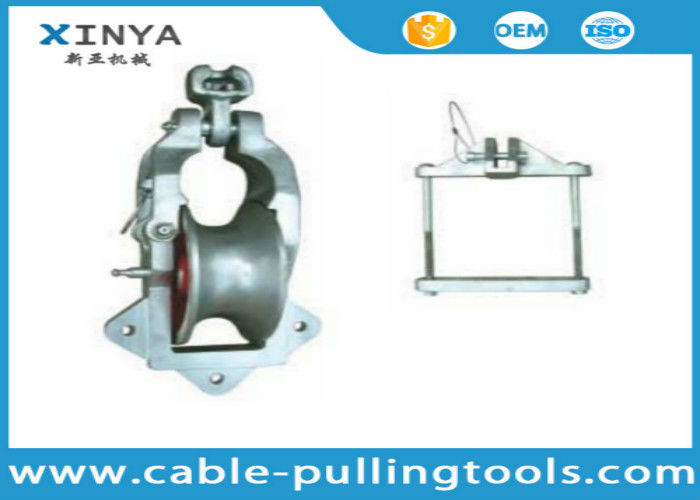

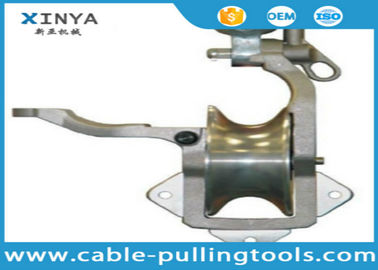

SH10TY Universal Block Power Roller Stringing Equipment For Overhead Power Lines
Item Numer:10295
Rated load(KN):10
Sheave diameter(mm):178x76
Weight(Kg):4.3
Notes:It is a versatile block,it either used in the head of insulartor string or fixed on the caliper of crossarm.
Applicable crossarm width of caliper(mm):99-175
Height(mm):95-159
Caliper weight(kg):1.6
