Product Details:
|
| Brand Name: | OEM | Type: | Fiber Optic Splicing Machine |
|---|---|---|---|
| Applicable Fiber Type: | SM, MM, DS, NZDS | Return Loss: | More Than 60dB |
| Dimension: | 150D X 130W X 126H (mm) | Connecting Time: | 9sec (typical Time) |
| Tensile Test: | 2N | Weight: | 1.54kgs (without Battery), 1.82kgs(including Battery), Including Attachments Packing Gross Weight:5.38kgs |
| High Light: | wire rope clip,cable pulling grips |
||

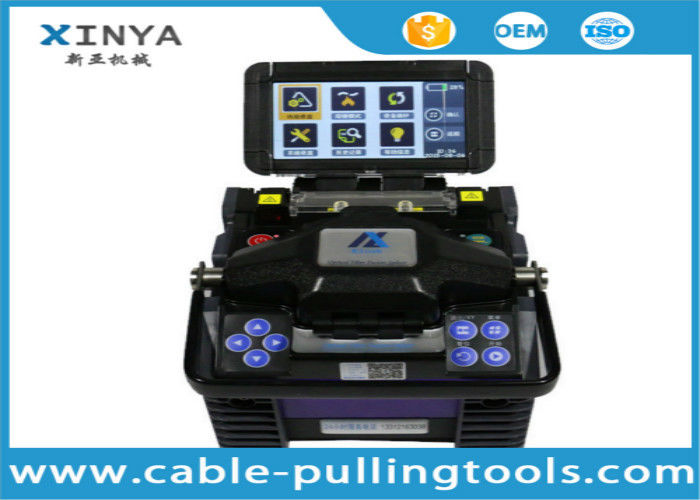

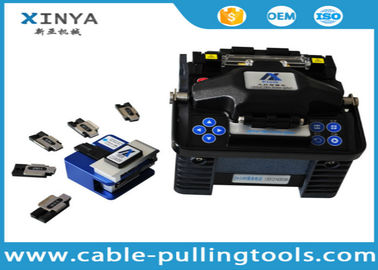

Digital Fusion Splicer Machine Fiber Optic Splicer ALK-88 With Optic Fiber Cleaver
Application
It is a Mini type Fusion splicing machine and have our own intellectual property right of fiber adjustment technology.
It adopts advanced PAS Fiber adustment technology. Adopt four motors drive, have fiber adjustment function, it is not only used for FTTX project, but also can be used for the trunk line, it is a machine which is the smallest volume, the lightest weight, the most fast splicing speed.
Features:
(1) Hardness: The body is made from titanium alloy, and it has rubber protection function, quakeproof, waterproof, dustproof .
(2) Fast: 7s fast splicing, 30s fast heating, support continuous heating, average efficiency improve 2-3 times.
(3) Long lifetime: 1group batteries. 200 fiber splicing, no memory effect Lithium Batteries, the fiber cleaver has 16 blade, long lifetime.
(4) Convenience: convenient for maintenance
(5) Six languages: Chinese, English, Russian, Portuguese, French etc.
Technical data of Digital Fusion Splicer Machine Fiber Optic Splicer ALK-88 With Optic Fiber Cleaver
| Applicable fiber Type | SM, MM, DS, NZDS |
| Applicable fiber Count | Single |
| Applicable diber diameter | Cladding diameter of 125μm, coating diameter 250~900μm |
| Splice Mode | Stored 40 groups, 80 groups of user-defined |
| Average splice loss | 0.01dB(SM), 0.005dB(MM), 0.04dB(DS), 0.05Db(NZDS) |
| Return Loss | More than 60dB |
| Connecting time | 9sec (typical time) |
| Splice loss evaluation | Have |
| Tensile test | 2N |
| Screen | 4.3inch color LCD, support Chinese and English display |
| Optical magnification | X/Y:115 times, X,or Y: 230 times |
| Power Supply | 11.1V lithium battery, 13.5V/5A power adapter, 12V vehicle power supply |
| Battery |
Typical Operating 220(splice/ heat shrink/thermal stripping) on a single charge 3h, can be resued 500 times |
| Maximum storage | 5000 set of the latest record storage |
| Data interface | USB2.0 |
| Operating environment |
Altitude 0~4000m, 0 to 95% relative humidity. Temperature -10 oC ~5 oC, the maximum wind speed 15 m/s |
| Storage Conditions |
0 to 95% relative humidity, temperature-40 oC~80 oC(except battery,) temperature -10 oC ~30 oC(battery) |
| Weight |
1.54kgs (without battery), 1.82kgs(including battery), including attachments packing gross weight:5.38kgs |
| Corrosion resistance |
Device components, spare parts and materials used meet corrosion requirements, fluid contamination from erosion |
| Size | 150D X 130W X 126H (mm) |
| Packing | New waterproof, drop, more than can be heavy 300kgs |
| Standard Package | |||
| No. | Description | Quantity | Remark |
| 1 | Optical fiber fusion splicer | 1 | |
| 2 | Power Adapter | 1 | |
| 3 | AC power Line | 1 | |
| 4 | Electrodes | 1 | |
| 5 | Cooler | 1 | |
| 6 | Stripper | 1 | |
| 7 | Miller Clamp | 1 | |
| 8 | Blowing Dust Ball with Brush | 1 | |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
