| Brand Name: | XINYA |
| Model Number: | CRS-3600/CRS-3600N |
| MOQ: | 1 pieces |
| Price: | get latest price |
| Delivery Time: | 7 days after payment |
| Payment Terms: | L/C, T/T, |

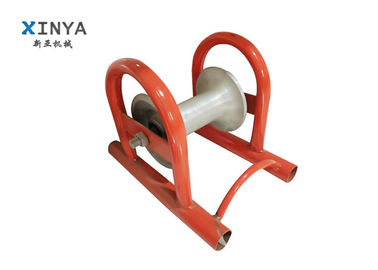

Cable Straight Roller (Cable pulley) widely used for the cable laying contractor, utility and electricity supply industry – this includes straight cable rollers, corner cable rollers, triple cable rollers and specialist cable rollers for pulling underground cables into trenches . Cable rollers should always be used when pulling cables.
Straight cable runs are pulled in using straight cable rollers suitably placed in the cable trench to prevent the cable being dragged on the trench bottom or in mud – cable roller spacing is dependent on cable type being laid and the cable pulling tension along the route. Leading cable rollers are used to support the cable over the entire drum width immediately before being pulled into the trench.
The ground cable rollers and corner cable rollers from SINTA are made of aluminium, steel or plastic. The sturdy and robust steel frames are completely galvanized and guarantee a long working life even under extreme conditions.
Cable straight roller types:
§ Ground Cable Roller, aluminium
Abrasion resistant aluminium rollers, galvanized steel tube frame
dust- and soil proof ball bearings, large ground clearance
§ Ground Cable Roller, steel
Abrasion resistant steel rollers, galvanized steel tube frame
dust- and soil proof ball bearings, large ground clearance
§ Ground Cable Roller, synthetic
Non-aging and weatherproof, extreme light weight, highly shock-resistant
stackable, large ground clearance, for cables up to Ø 100 mm
|
Item name
|
Material
|
Size (mm)
|
Weight (kg)
|
Color
|
|
Straight cable roller
|
Nylon or aluminium roller,steel frame
|
L330 * W230 * H260
|
4.5
|
orange,silvery
|
|
Corner cable roller
|
Nylon roller,steel frame
|
L530 * W300 * H300
|
10.5
|
orange,silvery
|
Cable straight roller features:
•Heavy duty tubular frame straight line roller
•160mm diameter aluminum roller
•oil impregnated mainteance free bushes fitted
•Bright zinc coated on the steel frame
