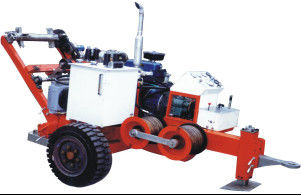

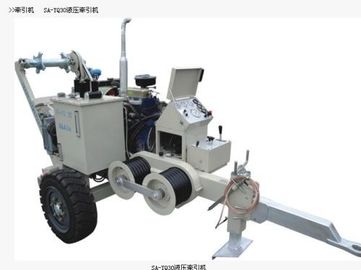

SA-YQ30 30KN Hydraulic Cable Puller With Diesel Engine for 220KV Transmission Line

SA-YQ30 30KN Hydraulic Cable Puller With Diesel Engine for 220KV Transmission Line
SA-YQ30 30KN Hydraulic Cable Puller With Diesel Engine for 220KV Transmission Line SA-YQ30 30KN Hydraulic Cable Puller With Diesel Engine for 220KV Transmission Line

Large Image :  SA-YQ30 30KN Hydraulic Cable Puller With Diesel Engine for 220KV Transmission Line

Product Details:
Place of Origin: Jiangsu,China(mainland)
Brand Name: Xinya
Certification: ISO
Model Number: SA-YQ30
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: get latest price
Packaging Details: standard export package
Delivery Time: 30 days after payment
Payment Terms: L/C, T/T, Western Union, Western Union
Supply Ability: 5 Set/Sets per Month

SA-YQ30 30KN Hydraulic Cable Puller With Diesel Engine for 220KV Transmission Line

Description
Maximum Linepull(KN): 30 Continuous Linepull(KN): 25
Maximum Linespeed(km/h): 5 Bullwheel Bottom Of Groove Diameter(mm): Φ300
Bullwheel Grooves Number: 7 Maximum Suitable Steelrope Diameter(mm): Φ13
Maximum Through Connector Diameter(mm): Φ40 Engine Power/speed(kw/rpm): 31/2200
Dimensions(mm): 3200*1600*2000 Weight(kg): 1500
High Light:

tension stringing equipment

,

cable puller tensioner

SA-YQ30 30KN Hydraulic Cable Puller With Diesel Engine for 220KV Transmission Line



main component

1. Chinese famous diesel engine.

2. Main pump:SAUER –SUNDSTRAND pump .main motor : SAI techniques product .

3. Radiator:AKG

4. Hydraulic instrument:

5. Mating with model GSP950 drum (order number :07125A).



Characteristic

1. It is applied to traction in the process of paying off the wire,earth wire,OPGW and ADSS.

2. Closed Hydraulic back oil circuit, bidirectional variable plunger pump ,you can change the traction in any case.

3. Maximum traction force can be preset, automatic overload protection.

4. Pressure loss automatic braking device is used to ensure the safety of system operation when loss of pressure in case of the engine suddenly stops or other causes.

5. Hydraulic traction rope clamping device, automatic rope ,convenient to loading and unloading.

6. Trailer type structure,rigid scaffold,attractive appearance.

Feature

1. Infinitely variable speed and line control ,the pull in the rope can be read on the line pull gauge .
2. The max pull for conductor –stringing operation can preset ,automatic overpull protection system .
3. Spring applied –hydraulic release brake acts automatically in case of hydraulic failure ensure to safety .
4. Attached reel winder with automatically level wind .load and unload conveniently .



Technical Data

Hydraulic puller.pdf

Maximum linepull (kN) 30
Continuous linepull (kN 25
Maximum linespeed (km/h) 5
Bullwheel bottom of groove diameter(mm) Φ300
Bullwheel grooves number 7
Maximum suitable steelrope diameter (mm) Φ13
Maximum through connector diameter (mm) Φ40
Engine power /speed (kW/rpm) 31/2200
Dimensions (mm) 3200×1600×2000
Weight (kg) 1500

SA-YQ30 30KN Hydraulic Cable Puller With Diesel Engine for 220KV Transmission Line 0
