Product Details:
|
| Product Name: | ZBP-20 Anti Twist Running Board For OPGW 11-16mm Diameter | Application: | OPGW Construction |
|---|---|---|---|
| Rated Load (KN): | 20 | Certification: | ISO9001 |
| OPGW Size Range (mm): | 11-16 | Overall Weight (kg): | 2*12.5 |
| Highlight: | block and tackle hoist,cable hoist puller |
||

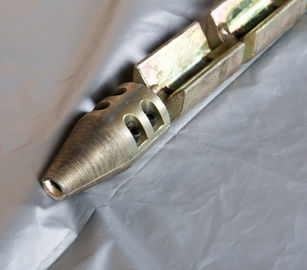

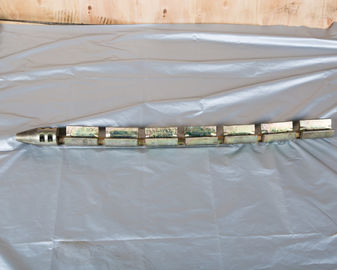

ZBP-20 Anti Twist Running Board For OPGW 11-16mm Diameter
Application
This running board is just for OPGW stringing.It is used for fiber optic cable stringing. The cable could be prevented spiraling by this tool. It is installed directly on the head of OPGW cable, with interval distance 2 meters for 2 pieces of devices.
Quick Infomation
Model;ZBP-20,generally, two work together
Space:2m
Working torque:32Nm
Suited diameter of OPGW:11--16mm
Weight:2x12.5kg
|
Item No.
|
Model
|
Rated load (KN)
|
Anti-twisting torque force (N.m) |
OPGW size range (mm)
|
Overall weight (kg)
|
|
20118
|
ZBP-20 |
20
|
32
|
11-16
|
2 X 12.5
|
