Product Details:
|
| Application: | Cable Transportation | Weight(kg): | 2268 |
|---|---|---|---|
| Max Payload(Ton): | 12 | Tyre: | 4 |
| Brake: | Hand Brake And Air Brake | Warranty: | 1 Year |
| High Light: | cable laying equipment,cable tower machine |
||

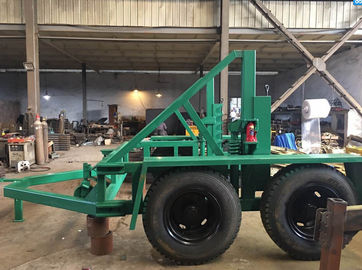

Capacity 12 Ton Cable Drum Trailer With Hand Brake and Air Brake for cable construction
Application
Cable trailers for power and power operations. Applicable to electric power, communication lines overhead works, easy to cable shipping display.
Features
The machine is equipped with automatic braking device, so it can brake effectiveiy by moving clutch.It is flexible steering,and can change angle at random. It is a necessary tool for electric construction because of its simple operation and easy maintenance.
Technical Data
| Model | Max Load | Weight | Max Lifting Height | Inside Wide | length | Wide | High |
| (T) | (kg) | mm | mm | (mm) | (mm) | (mm) | |
| LZ-3T | 3 | 600 | 1550 | 1400 | 3700 | 2200 | 1800 |
| LZ -5T | 5 | 900 | 1750 | 1650 | 4000 | 2700 | 2180 |
| LZ -8T | 8 | 1200 | 1900 | 1950 | 4200 | 3200 | 2300 |
| LZ -10T | 10 | 1500 | 2000 | 2000 | 4300 | 3400 | 2400 |
| LZ -12T | 12 | 2600 | 2000 | 2000 | 4300 | 3400 | 2400 |
We can make products with special specification as your requirements.
