Product Details:
|

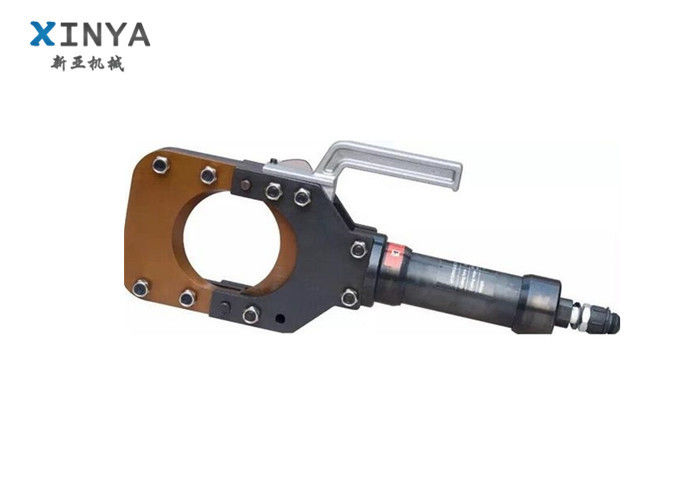

| Cutting Force(KN): | 120 | Item: | Hand Hydraulic Cutter |
|---|---|---|---|
| Application: | Cutting | Weight(KG): | 13 |
| Type: | Hydraulic Cutting Tools, Cutting Tool | Length: | 710mm |
| High Light: | cable laying equipment,cable tower machine |
||
1. the mobile blade can be quickly replaced
2. the bolt head, can be placed at any location was cut off
3. tubing connector with PT3 / 8 "tooth
4. shear the intensity: 12T
5. Cut Range: copper and aluminum cable φ100mm
6. Weight 13KG

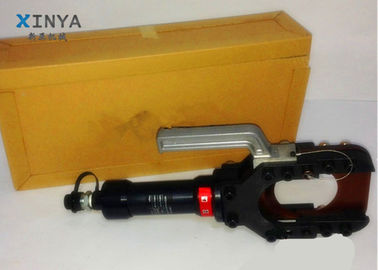

7. Packing: high-strength cardboard boxes
Feature:
1. Cutting heads provide fast cutting with remote operation.
2. All units can be operated by any hydraulic pump with the maximum, oil pressure of 700kgf/cm²(10,000psl).
3. All units are equipped with PT 3/8'' high pressure couplers.
4. PT-NPT adapters are available on request for NPT 3/8'' treaded couplers.
Data Sheet
| Model | CPC-100 |
| Output | 12T |
| Length | 650mm |
| Cutting range | Φ100mm |
| Package | wooden case |
