Product Details:
|
| Cutting Force(KN): | 60/120 | Item: | Hand Hydraulic Cutter |
|---|---|---|---|
| Application: | Cutting | Max Pressure: | 70Mpa |
| Type: | Hydraulic Cutting Tools, Cutting Tool | Battery: | DC 18V 3.0Ah Li-ion Battery |
| High Light: | cable laying equipment,cable tower machine |
||

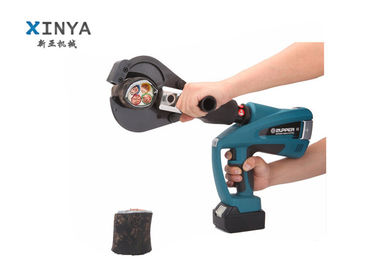

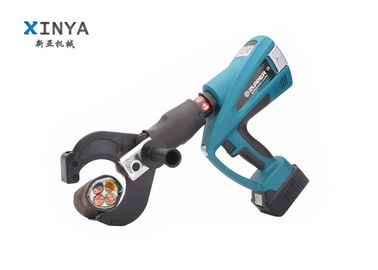

BZ-65C/85C/105C Battery cable cutter
Cutting range dia 65/85/105mm
Output 60/60/120KN
Cable Cu/Al cable, armoured Cu/Al cable
Hydraulic oil SHELL TELLUS T15
Data Sheet
| Technical data: | |||
| Item No: | BZ-65C | BZ-85C | BZ-105C |
| Crimping range: | Φ 65mm | Φ 85mm | Φ 105mm |
| Rated output: | 60KN | 60KN | 120KN |
| Rated pressure: | 63Mpa | 63Mpa | 66Mpa |
| Oil capacity: | 115ml | 115ml | 170ml |
| ax pressure: | 70Mpa | ||
| Cable: | Cu/Al cable, armoured Cu/Al cable | ||
| Battery: | DC 18V 3.0Ah Li-ion battery | ||
| Charging voltage: | AC 100V-240V, 50-60Hz | ||
| Charging time: | 2hours | ||
| Retraction mode: | Spring retraction( use with single action pump) | ||
| Hydraulic oil: | Shell Tellus T15 | ||
| Working temperature: | -10-40℃ | ||
