Product Details:
|
| Cutting Force(KN): | 60 | Item: | Hand Hydraulic Cutter |
|---|---|---|---|
| Application: | Cutting | Weight: | 6.2 |
| Type: | Hydraulic Cutting Tools, Cutting Tool | Length: | 340mm |
| Highlight: | cable laying equipment,cable tower machine |
||
Tools Introduction

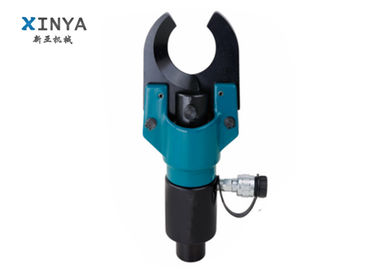

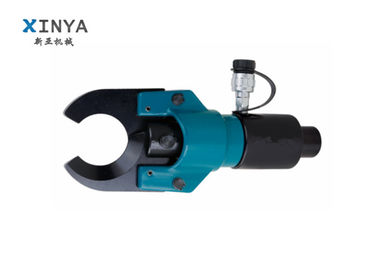

CC-50B is a scissors type hydraulic cutting head, works with an external hydraulic pump. Intended to be used to cut Cables (Telephone Cable / Lead Sheathed Cable / Underground Cable) up to Dia. 50mm
Feature
1 .Movable style blade for quick replacement.
2. Pin style head for cutting,wire at any position.
3. With good design of whole products.
4. Accurate adjustment before ex works delivery
5. The oil pipe couple fitted with PT3/8"thread.
6. To be worked with pedal pump, manual pump and electric driven hydraulic pump.
Data Sheet
|
Description
|
-Features:
|
|
100% New, Never Used.
|
1.The blades are manufactured form high strength special steel,heat treated to ensure a long service life.
|
|
-Model:CC-50B
|
|
|
-Cutting range:Electrical wireΦ50mm
The cable or AL/CU cableΦ50mm
|
2.Hydraulic cutting head complete with quick automatic coupler for conne to a hydraulic pump with a working pressure of 700 bai max.
|
|
-Cutting force:12ton
|
|
|
-Length:310mm
|
|
|
-Weight:3.0Kg
|
|
|
-Packaging size:355*90*195mm
|
|
|
-Package:Steel case
|
