Product Details:
|
| Rated Load: | 10KN | Weight: | 3*3.8-3*3.5KG |
|---|---|---|---|
| Size: | 230mm*260mm*330mm | Application: | Setting Cable |
| Type: | Cable Pulling Roller | Wheel: | Aluminum |
| High Light: | cable laying equipment,cable tower machine,Alu Wheel Underground Cable Tools |
||
Straight line cable roller
Power and communication cables are often laid in open trenches where the road and ground conditions result in the cable route having a number of curves. With the cable’s own weight and the high tensions involved the cable cannot be fed cleanly.
The ground cable rollers and corner cable rollers from SINTA are made of aluminium, steel or plastic. The sturdy and robust steel frames are completely galvanized and guarantee a long
working life even under extreme conditions.
Specification
Cable straight roller types:

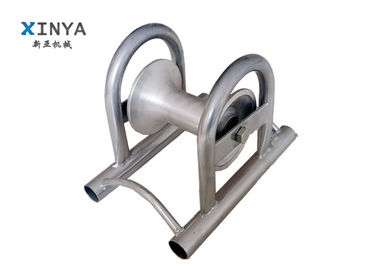

§ Ground Cable Roller, aluminium
Abrasion resistant aluminium rollers, galvanized steel tube frame
dust- and soil proof ball bearings, large ground clearance
§ Ground Cable Roller, steel
Abrasion resistant steel rollers, galvanized steel tube frame
dust- and soil proof ball bearings, large ground clearance
§ Ground Cable Roller, synthetic
Non-aging and weatherproof, extreme light weight, highly shock-resistant
stackable, large ground clearance, for cables up to Ø 100 mm
|
Item name
|
Material
|
Size (mm)
|
Weight (kg)
|
Color
|
|

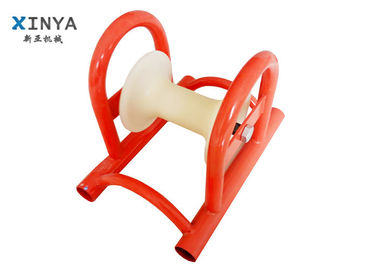

cable straight roller
|
Nylon or aluminium roller,steel frame
|
L330 * W230 * H260
|
4.5
|
orange,silvery
|
|
cable side roller
|
Nylon roller,steel frame
|
L530 * W300 * H300
|
10.5
|
orange,silvery
|
Different types of cable rollers
