Product Details:
|
Name: | Cable Laying Tools Orifice Type Cable Protection Roller Cable Pulley | Application: | Cable Protection |
---|---|---|---|
Weight: | 6.7kg | Wheel: | Nylon |
Type: | Bellmouth Roller | Working Load: | 10KN |
High Light: | cable stringing equipment,conductor stringing equipment,Bellmouth Roller Cable Pulling Tools |

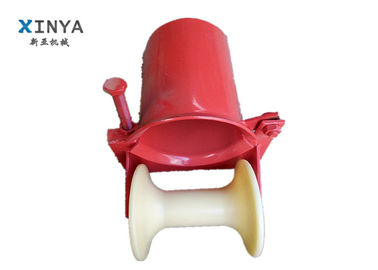

Cable Laying Tool Protect Cable Roller
Power and communication cables are often laid in open trenches where the road and ground conditions result in the cable route having a number of curves. With the cable’s own weight and the high tensions involved the cable cannot be fed cleanly.The ground cable rollers and corner cable rollers are made of aluminium, steel. The sturdy and robust steel frames are completely galvanized and guarantee a long working life even under extreme conditions.
1. We manufacture a lot of models Cable pulling block for different uses in the overhead transmission line construction.
2. They have are used to support conductors, OPGW,ADSS, communication lines.
3. The sheave of the pulley blocks are made from high strength MC nylon,or aluminum materials, and the frame of blocks are made of galvanized steel.
4. Cable pulley block are high strength and flexibility, easy to use, light weight, wearresisting, and long service life.
Cable Roller Specification
Model
|
Diameter of pipe hole
|
Weight
|
HCR11-80
|
D80
|
4.3kg
|
HCR11-90
|
D90
|
4.9kg
|
HCR11-100
|
D100
|
5.2kg
|
HCR11-130
|
D130
|
6.3kg
|
HCR11-150
|
D150
|
7.6kg
|
HCR11-180
|
D180
|
9.5kg
|
HCR11-200
|
D200
|
11kg
|
Cable Laying Tool Protect Cable Roller
Straight cable runs are pulled in using straight cable rollers suitably placed in the cable trench to prevent the cable being dragged on the trench bottom or in mud - cable roller spacing is dependent on cable type being laid and the cable pulling tension along the route. Leading cable rollers are used to support the cable over the entire drum width immediately before being pulled into the trench.
Electrical steel cable pulling roller, Straight line cable block be packed by carton.

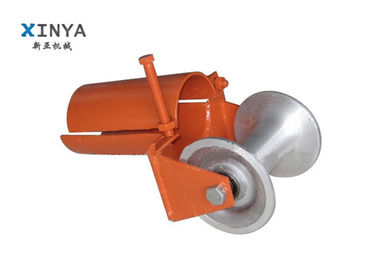

Other types Aluminum Cable roller
