Product Details:
|
| Feature: | Easy Operate | Handle Material: | Rubber |
|---|---|---|---|
| Application: | Shearing | Weight(KG): | 13 |

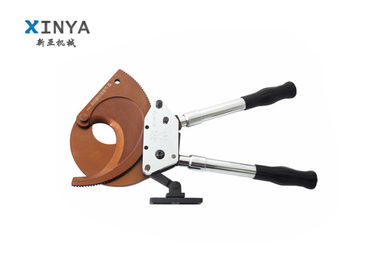

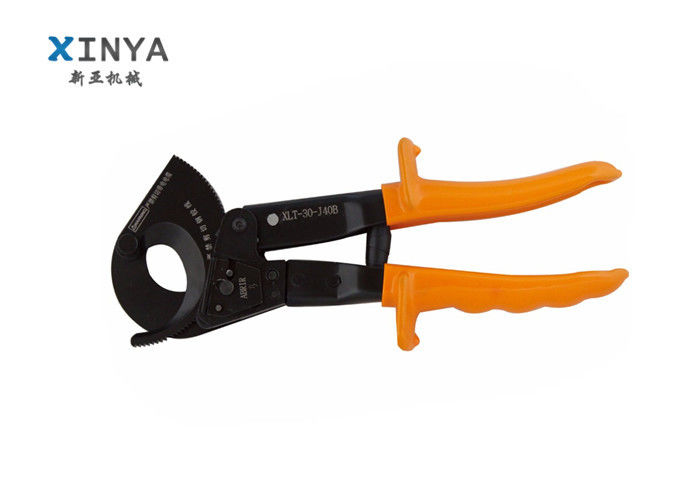

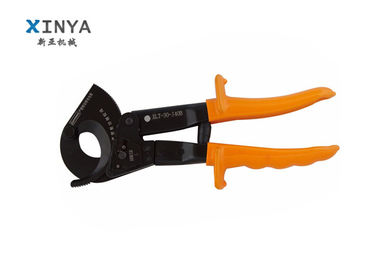

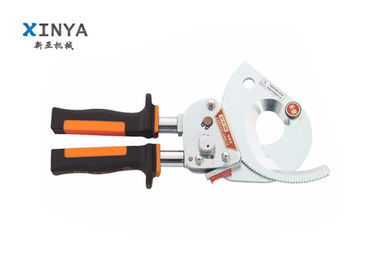

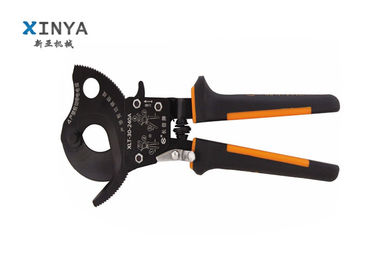

| Type: | Ratchet Electric Cable Shears Cable Cutter Wire Scissors | Length: | 710mm |
| Highlight: | cable laying equipment,cable tower machine |
||
Including handle device, cutting device and propulsion, the propulsion of the shear clamp is using two gear transmission, to drive the activity card teeth on the cutter body move forward, make activity and fixed blade knife body formed by the blade of the circular department gradually narrowed, in order to achieve the effect of shear, gear in the direction of the tangent to push the gear on the blade, and the gear tooth blade push activities with multiple card of card, scatter push force on the card of tooth, tooth is not easy to damage, make the card to extend its service life.
Characteristic
Suitable for cutting of copper and aluminum core armored cable;
Simple operation, easy to carry;
atchet propulsion, shear more effort;
The overall heat treatment of high strength, shear blades, large range of.
Ratchet Electric Cable Shears Wire Scissors Different specifications as below:
| Ratchet cable cutter | ||
| Model | Size | Weight |
| J12 | 345(514)*125*46mm | 1.95kg |
| J30 | 405(514)*160*64mm | 3.6kg |
| J13 | 345(514)*125*46mm | 1.95kg |
| J25 | 745*135*50mm | 3.45kg |
| J50 | 400(570)*158*52mm | 3.2kg |
| J40 | 260*100*35mm | 1.15kg |
| J40A | 245*135*42mm | 1.05kg |
| J40B | 250*95*30mm | 0.65kg |
| J75 | 420*205*50mm | 3.6kg |
| J95 | 818*265*50mm | 5.43kg |
| J100 | 490*270*50mm | 6.4kg |
| J130 | 500*300*50mm | 8.1kg |
| J160 | 500*300*50mm | 8.11kg |
Packing &Delivery
Ratchet Electric Cable Shears Wire Scissors packed by carton or as your request.
