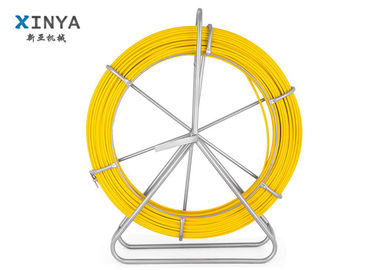

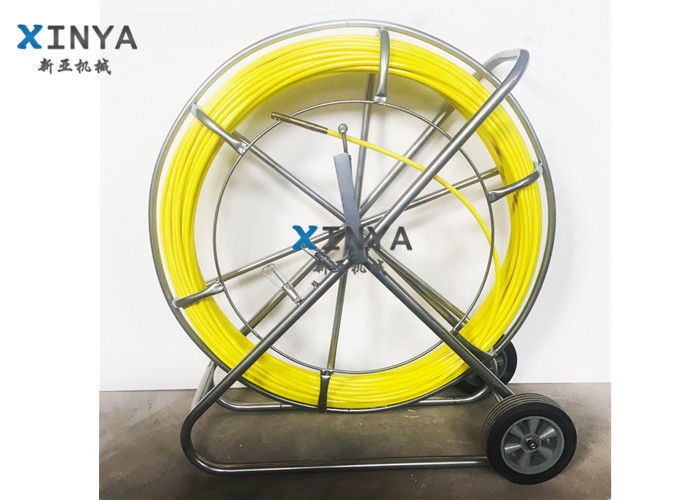

FRP Electric Cable Duct Rodders Basic Construction Tools Conduiting Cable Push Rods 12mm

FRP Electric Cable Duct Rodders Basic Construction Tools Conduiting Cable Push Rods 12mm
FRP Electric Cable Duct Rodders Basic Construction Tools Conduiting Cable Push Rods 12mm FRP Electric Cable Duct Rodders Basic Construction Tools Conduiting Cable Push Rods 12mm

Large Image :  FRP Electric Cable Duct Rodders Basic Construction Tools Conduiting Cable Push Rods 12mm

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: P
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: latest price
Packaging Details: Carton
Delivery Time: 7 workdays after payment
Payment Terms: L/C, T/T, , Western Union
Supply Ability: 100sets/day

FRP Electric Cable Duct Rodders Basic Construction Tools Conduiting Cable Push Rods 12mm

Description
Item: FRP Electric Cable Duct Rodders Basic Construction Tools Conduiting Cable Push Rods 12mm Rod Diameter: 4.5~16mm
Material: Fiberglass Reinforced Plastic Technology: Pultrusion
Length Of Pulling Rod: 50-300M Type: Duct Rod
Fiber Glass Content: 75-80% Elongation At Break: 2.5-3%
High Light:

construction hand tools

,

basic hand tools

FRP Electric Cable Duct Rodders Basic Construction Tools Conduiting Cable Push Rods 12mm



FRP conduit duct rodder is an ideal tool for underground jobs such as pulling cables and lines through conduits, tubes, pipes or ducts. For its high tensile strength, wear-resistant surface and elastic body, it is widely used in the fields of telecommunication, electric power, water conservancy, etc.

Specification Rod Diameter (mm) 4mm-18mm
Rod Length (m) 10m-500m (oem)
Frame Spec.(mm) 1300x450x1330,1200x420x1220,980x350x1000,
680x240x700, etc
Wheel Diameter(mm) 300mm
Wall thickness of Metal Frame 2.2mm
Color blue, yellow, red, white etc



Material
Rod Inner Extruded by fiber glass and high strength resin at high
temperature
Rod Outer High Density polyethylene coating
Iron Frame Steel with high temperature sprayed plastic or Spray coating
Wheel rubber
Brake Yes
Drawing head copper
Physical Characters Density 55g/m
Working temperature -40°C to +80°C
Breaking tension 100kg
Bending Radius 295mm
Technology Pultrusion
Packaging Inside plastic woven strip wind around the frame
Outside carton

Fibreglass Duct Rod.pdf

Color:fiberglass electrical duct rodder can be blue,green,yellow,red,white as the photo shows.



Structure

FRP Electric Cable Duct Rodders Basic Construction Tools Conduiting Cable Push Rods 12mm 0

Color

FRP Electric Cable Duct Rodders Basic Construction Tools Conduiting Cable Push Rods 12mm 1

FRP Electric Cable Duct Rodders Basic Construction Tools Conduiting Cable Push Rods 12mm 2

Product Line

FRP Electric Cable Duct Rodders Basic Construction Tools Conduiting Cable Push Rods 12mm 3

FRP Electric Cable Duct Rodders Basic Construction Tools Conduiting Cable Push Rods 12mm 4

FAQ
1.Q: Are you Trading Company or Factory:
A:. We are Trading Company and also Factory
2.Q: What's your production ability for one month?
A:We can product Metric Tons per Month 200000 pcs .
3.Q: What's your MOQ?
A:500pcs
4.Q:What's your shipping port?
A:Tianjin,shanghai or any port as your reqirement
5.Q: What's your Payment Terms?
A:L/C,T/T,
