Product Details:
|
| Rod Diameter: | 4-16mm | Length Of Pulling Rod: | 50-300M |
|---|---|---|---|
| Rod Outer: | High Density Polyethylene Coating | Usage: | Pipeline Operations,Cable Pulling |
| Type: | Fiber Snake Duct Rodder | Selling Point: | Cable Laying Equipment |
| Frame: | Galvanized | Material: | Fiberglass Core,and ABS Layer |
| Highlight: | cable laying equipment,cable tower machine,Electric Underground Cable Tools |
||
Electric Underground Cable Tools Cable Duct Rodders Conduiting Cable Push Rods

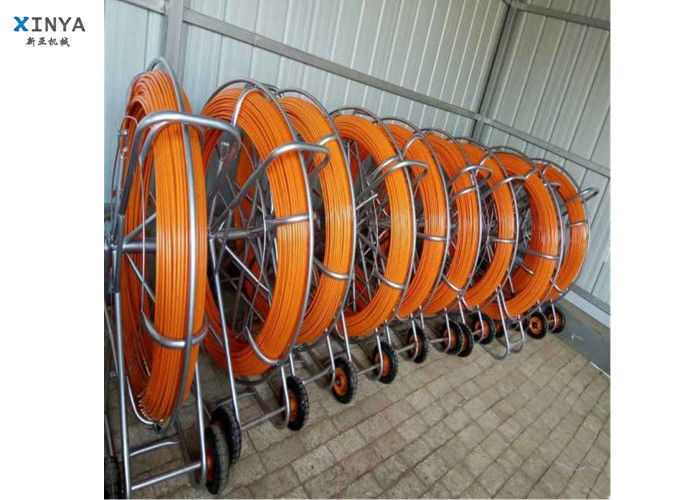

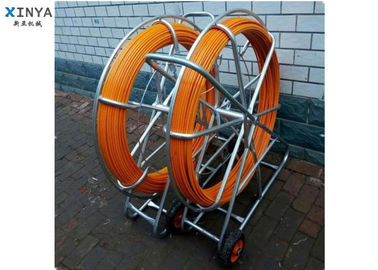

FibRod Fiber Glass Duct Rodder
FibRod - FRP Duct Rodder is a very high quality cable pulling equipment manufactured by Adishwar Tele Networks in India. It's design make it compact and easy to carry.
Tensile Strength of Rodder is the USP of our product. With more than 500 kg tensile strength, it can easy pull any cable into conduit / duct / pipe
The frame of FRP Duct Rodder is made from very high quality metal, suitable for rough handling at complicated sites. It's anti rust coating gives it long life.
Size :
Length: 50 meter, 200 meter, 250 meter, 300 meter, 350 meter (also customizable)
OD: 6.5mm, 8mm, 9mm, 9.5, 11mm, 14mm
Application :
Telecom Cable (Fiber Optic Cable, CORD Cable, Networking Cable)
Power Cable
Other type of cable
Features :
Easy to install
Anti UV Capability
Resistance to acid, Alkali and Corrosion
High tensile strength
Flexible but strong
Good temperature adaptability
Compact design makes it easy to carry
Tough and strong body
Technical Data
Fibreglass Duct Rod.pdf
Specification | Rod Diameter (mm) | Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16 |
Rod Length (m) | 30~500 | |
Frame Spec.(mm) | 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc | |
Wheel Diameter(mm) | 300mm | |
Wall thickness of Metal Frame | 2.2mm | |
Color | blue, yellow, red, white etc | |
Material | Rod Inner | Extruded by fiber glass and high strength resin at high temperature |
Rod Outer | High Density polyethylene coating | |
Iron Frame | Steel with high-temperature sprayed plastic or Spray coating | |
Wheel | rubber | |
Brake | Yes | |
Drawing head | copper | |
Physical Characters | Density | 55g/m |
Working temperature | -40°C to +80°C | |
Breaking tension | 100kg | |
Bending Radius | 295mm | |
Technology | Pultrusion | |
Packaging | Inside | plastic woven strip wind around the frame |
Outside | Wooden pallet and Wooden box |
Package
