Product Details:
|
| Rod Diameter: | 4-16mm | Length Of Pulling Rod: | 50-300M |
|---|---|---|---|
| Rod Outer: | High Density Polyethylene Coating | Iron Frame: | Steel With High-temperature Sprayed Plastic Or Spray Coating |
| Type: | Fiber Snake Duct Rodder | Selling Point: | Cable Laying Equipment |
| Item: | Portable Fiberglass Duct Rodder For Handy Carry In Cable Pulling | Application: | Pipeline Operations,Cable Pulling |
| High Light: | cable laying equipment,cable tower machine,Portable Fiberglass Duct Rodder |
||

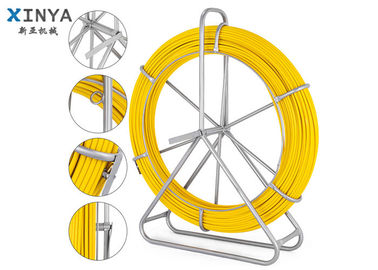

Portable Type Fiberglass Duct Rodder For Handy Carry In Cable Pulling
Portable duct rodder shows good performance in wire or cable pulling in pipes, conduits or ducts. Without wheels, it is easy to carry or put in the boot of the car. Generally, when the pulling rod diameter is below 10mm (including 10mm), there is a portable duct rodder needed. And some portable duct rodders are not equipped with a hand operated brake on the frame.
Portable duct rodder with totally enclosed handle
Portable duct rodder with totally enclosed handle is designed for good protection of the pulling rod (See Figure 1).
Portable duct rodder with semi-closed handle
Some portable duct rodders are designed with semi-closed handle for light weight (See Figure 2).
Portable duct rodder with bushing handle
Bushing handle of duct rodder is for reducing pressure on the hand who carries it. The grip is very important to the duct rodder (See Figure 3).

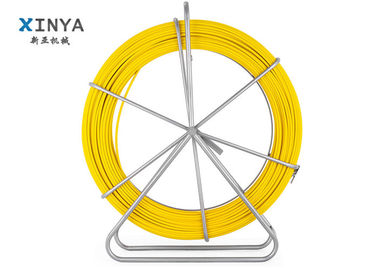

Figure 1: A portable duct rodder, galvanized frame for anti-corrosion.
Portable duct rodder specification sheet is listed below.
|
Item |
Rod diameter |
Bend radius |
Rod length |
Conduit diameter |
Frame size |
|---|---|---|---|---|---|
|
PDR - 4 |
4 mm |
100 mm |
50 m - 300 m |
1 cm - 3 cm |
40 cm × 50 cm × 16 cm; 84 cm × 94 cm × 50 cm; 109 cm × 112 cm × 50 cm |
|
PDR - 5 |
5 mm |
100 mm |
50 m - 300 m |
2 cm - 3.2 cm |
45 cm × 50 cm × 16 cm; 60 cm × 75 cm × 17 cm |
|
PDR - 6 |
6 mm |
100 mm |
90 m - 300 m |
2.5 cm - 7.6 cm |
71 cm × 81 cm × 24 cm; 61 cm × 72 cm × 28 cm |
|
PDR - 8 |
8 mm |
150 mm |
150 m - 350 m |
4 cm - 9 cm |
110 cm × 120 cm × 40 cm |
|
PDR - 10 |
10 mm |
178 mm |
90 m - 365 m |
7.5 cm - 14 cm |
71 cm × 81 cm × 33 cm; 87 cm × 92 cm × 40 cm; 120 cm × 130 cm × 45 cm |
Note: other sizes can be ordered as customers' demand.
