Product Details:
|
| Capacity Of Oil: | 2L | Voltage: | 220v |
|---|---|---|---|
| High Pressure: | 70Mpa | Electric Power: | 1.2KW |
| Frequency: | 50-60HZ | Rotate Speed: | 3700 R/min |
| Weight: | 10kg | Warranty: | 1 Year |
| High Light: | 700 Bar Electric Hydraulic Pump,220V Electric Hydraulic Pump,Cable Lug Crimping Electric Hydraulic Pump |
||

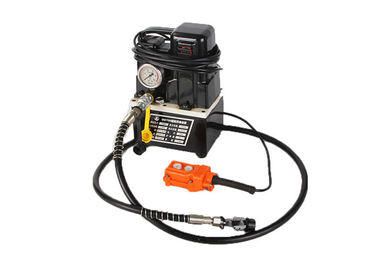

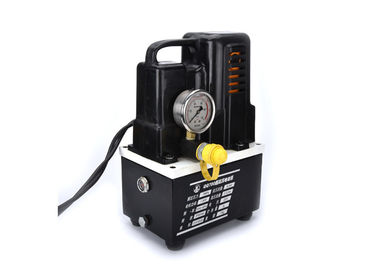

700 bar 220V Electric Hydraulic Pump Station Model QQ-700 for supply power cable lug crimping
Features
Data Sheet
| High pressure | 70Mpa | High pressure flow | 0.7L/min |
| Low pressure | 7Mpa | Low pressure flow | 5L/min |
| The motor power | 1.2KW | voltage | 220V |
| Frequency | 50Hz-60Hz | Speed | 3700r/min |
| The weight of the | 10KG(excluding outer packing) | Oil storage | 2L |
| Oil of | 32# anti-wear hydraulic oil or 7-15# hydraulic transmission oil | ||
| Product features | The hydraulic electric pump has the functions of small volume, high pressure, light weight, easy to carry, simple operation and wide application. High and low pressure two-stage output, large amount of oil; The low pressure adopts plunger type to improve the effective pressure., Single oil road, electromagnetic wire remote control, suitable for various cutting, perforation, bending, lifting and other functions; Pressure overload protection device, avoid overpressure and damage equipment; Automatic protection, to ensure that the use will not leak; Remember the pressure relay, the pressure in place can control the oil pump stop working. |
||
