Product Details:
|
| Crimp Form: | Six Angle | Usage: | Crimping Cable |
|---|---|---|---|
| Crimping Range: | 4-70sqmm | Output: | 80KN |
| Working Stroke: | 10mm | Type: | Hydraulic Cable Crimping Plier |
| Rotation: | 180Degree | Color: | Yellow |
| Highlight: | Terminal Crimper Crimping Tools,Hexagon Type Hydraulic Crimping Tools,Six Angle Hydraulic Crimping Tools |
||
Product Features

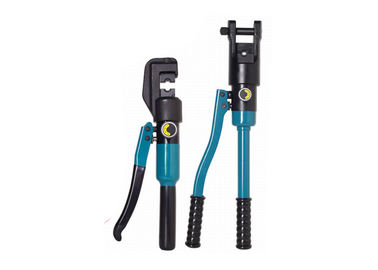

Hydraulic crimping tool is a professional tool for crimping copper and aluminum lugs with different types, a wide range of crimping dies from 4-1000mm² to suit for different size demand. The main crimping shape is hesagonal, sepcial shape design is provided.
Product Description

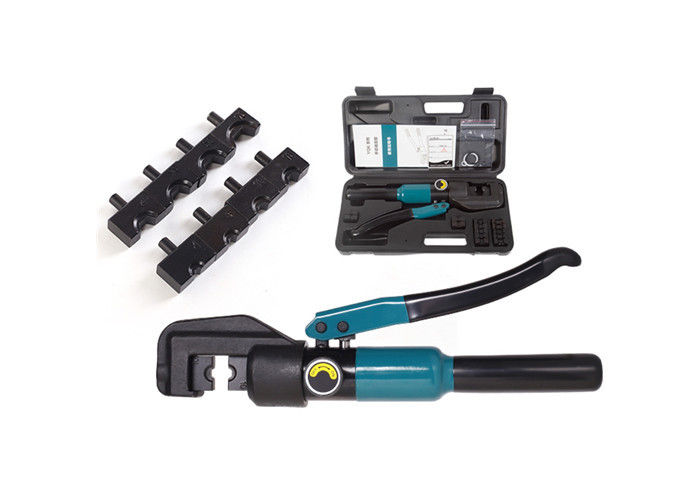

Model: YQK-70
| Crimping Range | Cu 4-70mm2 |
| Crimping Force | 6T |
| Crimping Type | Hexagon Crimping |
| Stroke | 12mm |
| Size | 305x100x55mm |
| Weight | appox.2.8kg |
| Package | plastic case |
| Standard Accessories |
4,6, 10, 16, 25, 35, 50, 70mm2 |
Heavy Duty 4-70mm 8T Manually Hydraulic Crimper Crimping Tool High speed hydraulic pressure working, then compression force lift and automatically change to low speed.
Item No |
Dimension(mm) | |||||||
| φ | D | d | L | L1 | B | |||
| DT-16 | 8.5 | 10 | 6.5 | 68 | 30 | 16 | ||
| DT-25 | 8.5 | 11 | 7 | 70 | 33 | 18 | ||
| DT-35 | 10.5 | 12 | 8.5 | 80 | 36 | 20.5 | ||
| DT-50 | 10.5 | 14 | 9.5 | 85 | 38 | 23 | ||
| DT-70 | 12.5 | 16 | 11.5 | 95 | 43 | 26 | ||
| DT-95 | 12.5 | 18 | 13.5 | 104 | 46 | 28 | ||
| DT-120 | 14.5 | 20 | 15 | 112 | 49 | 30 | ||
| DT-150 | 14.5 | 22 | 16.5 | 120 | 51 | 34 | ||
| DT-185 | 16.5 | 25 | 18.5 | 125 | 55 | 37 | ||
| DT-240 | 16.5 | 27 | 21 | 136 | 60 | 40 | ||
Item No |
Dimension(mm) | |||||||
| φ | D | d | L | L1 | ||||
| DL-16 | 8.5 | 10 | 6 | 70 | 30 | |||
| DL-25 | 8.5 | 12 | 7 | 75 | 34 | |||
| DL-35 | 10.5 | 14 | 8.5 | 85 | 38 | |||
| DL-50 | 10.5 | 16 | 9.8 | 90 | 40 | |||
| DL-70 | 12.5 | 18 | 11.5 | 102 | 48 | |||
| DL-95 | 12.5 | 21 | 13.5 | 112 | 51 | |||
| DL-120 | 14.5 | 23 | 15 | 120 | 53 | |||
| DL-150 | 14.5 | 25 | 16.5 | 126 | 56 | |||
| DL-185 | 16.5 | 27 | 18.5 | 133 | 58 | |||
| DL-240 | 16.5 | 30 | 21 | 140 | 60 | |||
Operation
