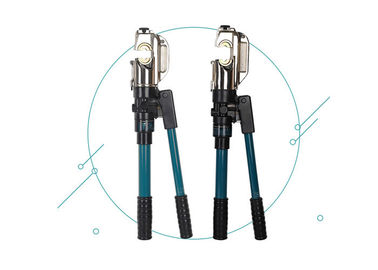

Hydraulic Crimping Tool Hexagon Crimping Type Safety System Inside Crimp Cu 50 To 400mm2

Hydraulic Crimping Tool Hexagon Crimping Type Safety System Inside Crimp Cu 50 To 400mm2
Hydraulic Crimping Tool Hexagon Crimping Type Safety System Inside Crimp Cu 50 To 400mm2 Hydraulic Crimping Tool Hexagon Crimping Type Safety System Inside Crimp Cu 50 To 400mm2

Large Image :  Hydraulic Crimping Tool Hexagon Crimping Type Safety System Inside Crimp Cu 50 To 400mm2

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: EP-430
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: get latest price
Packaging Details: plastic box
Delivery Time: 7 workdays after payment
Payment Terms: L/C, T/T,
Supply Ability: 10000sets/week

Hydraulic Crimping Tool Hexagon Crimping Type Safety System Inside Crimp Cu 50 To 400mm2

Description
Output: 120KN Working Stroke: 32MM
Crimping Range: 400mm2 Weight: 6.5KG
Application: Crimping Die Set: 50, 70, 95, 120, 150, 185, 240, 300, 400 Mm2
High Light:

400mm2 Hydraulic Crimping Tool

,

Hexagon Hydraulic Crimping Tool

,

12T Hydraulic Crimping Tools

Hydraulic Crimping Tool Hexagon Crimping Type Safety System Inside Crimp Cu 50 to 400mm2



Specifications:
1. Design to accommodate hexagonal dies for applying compression lugs to copper, aluminum conductors.
2. Two stage pumping action for rapid ram advance to the connector hold position with minimum pumping action.
3. Manual retraction when the max pressure reached by twisting the handle.
4. The glass fiber operation insulates the stick, can bear the electric voltage 220kv, keeping on the minute.
5. 180° rotatable head.
6. The pressure outside the body adjusts to press the valve, don't need the whole structure to lie down.

Features
Hydraulic crimping tools is a professional tool for crimping copper and aluminum lugs with different types, a wide range of crimping dies from 4-1000mm^2 to suit for different demand. The main crimping shape is hexagonal, special shape design is provided.

1. Design to accommodate hexagonal, dies of hydraulic tools for applying compression fittings too copper, aluminum conductors.

2. Two stage pumping action for rapid ram advance to the connector hold position with minimum pumping action.

3. Automatic retraction when the pressure of crimper tools reaches 700kg/cm2 reached.

4. The glass fiber operation insulates the stick, the crimping tool can bear the electric voltage 200KV, keeping on the minute.

5. Hydraulic tools with 180 degree rotatable head.

6. The pressure of the hydraulic tools outside the body adjusts to press the valve.



Model:EP-430(Safety valve inside)

Crimping Range Cu 16-400mm2
Crimping Force 12T
Crimping Type hexagon crimping
Stroke 32mm
Oil capacity 145CC
Weight approx.6.5kg

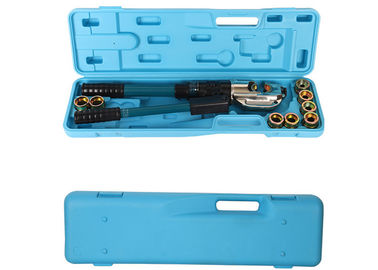

Package Plastic case
Accessories

50, 70, 95, 120, 150, 185, 240, 300, 400 mm2



Hydraulic Crimping Tool Hexagon Crimping Type Safety System Inside Crimp Cu 50 To 400mm2 0

Hydraulic Crimping Tool Hexagon Crimping Type Safety System Inside Crimp Cu 50 To 400mm2 1

Hydraulic Crimping Tool Hexagon Crimping Type Safety System Inside Crimp Cu 50 To 400mm2 2

Hydraulic Crimping Tool Hexagon Crimping Type Safety System Inside Crimp Cu 50 To 400mm2 3
