50kN Hydraulic Cable Stringing Equipment For Transmission Line Construction

50kN Hydraulic Cable Stringing Equipment For Transmission Line Construction
large.img.alt
50kN Hydraulic Cable Stringing Equipment For Transmission Line Construction 50kN Hydraulic Cable Stringing Equipment For Transmission Line Construction 50kN Hydraulic Cable Stringing Equipment For Transmission Line Construction

Large Image :  50kN Hydraulic Cable Stringing Equipment For Transmission Line Construction

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: SA-YQ50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD40000-50000/set
Packaging Details: 2 sets with 20GP
Delivery Time: 30 workdays after payment
Payment Terms: L/C, T/T,
Supply Ability: 10sets/month

50kN Hydraulic Cable Stringing Equipment For Transmission Line Construction

Description
Type: Hydraulic Puller Application: Electrical Cable Release Or Pulling
Maximum Traction: 60KN Rated Traction: 50KN
Maximum Traction Speed: 5 Km/h Rated Traction Speed: 2.5 Km/h
High Light:

50kN Cable Puller Machine

,

Electrical Transmission Line Stringing Tools

,

Hydraulic Cable Stringing Equipment

50kN hydraulic cable puller machine cable stringing equipment for transmission line construction



Application:

Hydraulic cable puller machine is a kind of efficient traction equipment when tension of transmission line is erected. It can be used for traction and deployment of single conductor, double-split conductor and four-split conductor in flat, mountainous and hilly terrain. It can also be used for OPGW or ADSS cable traction display in various terrains.



Features:

1. The traction force and speed can be adjusted steplessly and displayed intuitively.

2. Color LCD display for engine parameters.

3. Traction force can be preset with overload protection.

4. Pressure-loss automatic braking function to ensure the safety of the operation when the engine suddenly stalls or other reasons cause the system to lose pressure.

5. Hydraulic traction rope clamping device, easy to replace wire rope tray.

6. The engine is equipped with a preheating device. The engine manual pump and diesel filter are easy to operate.

7. With automatic winding device of steel wire rope, it is convenient to arrange rope automatically and to load and unload.



Data Sheet

Item Product model SA-QY-50
Performance parameters Rated traction 50kN
Maximum traction 60kN
Rated traction speed 2.5km/h
Maximum traction speed 5km/h
Corresponding traction force 25kN
Structural parameters Traction drum Bottom diameter 450mm
Number of rope grooves 7
Pitch distance 42mm
Groove depth 10mm
Maximum applicable diameter of wire rope 18mm
Dimensions 3280×1900×2000mm
Weight 3000kg
Main configurations Engine CUMMINS
Electrical system 24V
Hydraulic pump REXROTH
Hydraulic motor REXROTH
Reducer REXROTH
Tailstock winding motor DANFOSS
Hydraulic instrument WIKA
Main hydraulic valves ATOS

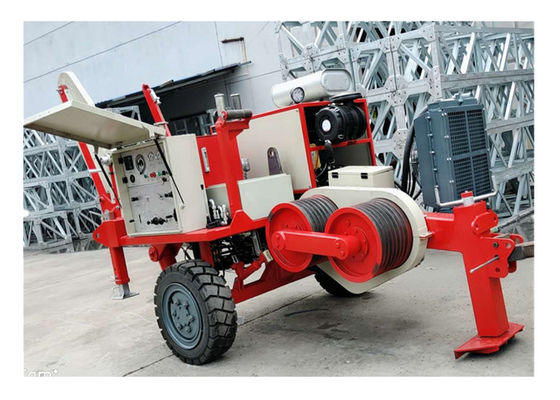

50kN Hydraulic Cable Stringing Equipment For Transmission Line Construction 0

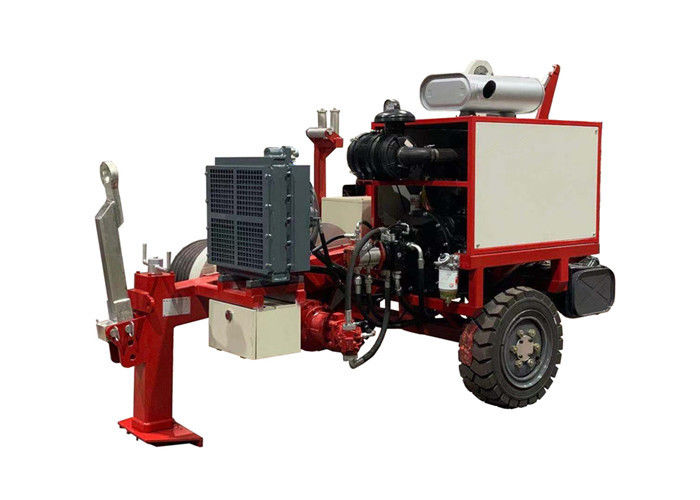

50kN Hydraulic Cable Stringing Equipment For Transmission Line Construction 1
