Folded Frame Straight Line Cable Laying Roller Galvanised Finish Heavy Duty

Large Image : Folded Frame Straight Line Cable Laying Roller Galvanised Finish Heavy Duty

Product Details:

Place of Origin:	Jiangsu , China
Brand Name:	XINYA
Certification:	ISO9001
Model Number:	-

Payment & Shipping Terms:

Minimum Order Quantity:	5 pieces
Price:	get lastest price
Packaging Details:	carton
Delivery Time:	10 days after payment
Payment Terms:	L/C, T/T, , Western Union
Supply Ability:	1000 Piece/Pieces per Month

Contact Now

Folded Frame Straight Line Cable Laying Roller Galvanised Finish Heavy Duty

Description

Weight:	7KG	Height:	155mm
Application:	Cable Laying	Base Size:	300 X 200mm
Capacity:	440 Lb	Surface Treatment:	Galvanised Finish
Highlight:	Galvanised Finish Cable Laying Roller , Folded Cable Laying Roller , Alu Cable Laying Roller

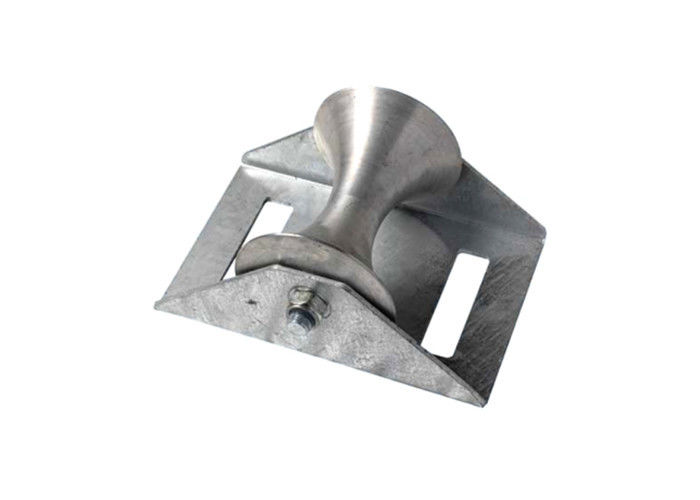

Heavy duty folded frame straight line cable laying roller

Heavy Duty Straight Line Cable Laying Roller

The diablo is machined with a 107mm radius giving a maximum capacity of 214mm diameter.

Features

Heavy duty folded frame straight line roller
Aluminium diablo roller with 78mm radius
Sealed roller bearing and 20mm shaft
Galvanised finish
Weight: 7Kg

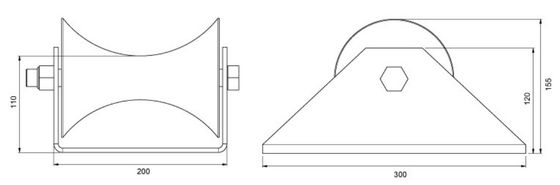

Data Sheet

Base footprint		Height
(in)	(mm)	(in)	(mm)
11.81 x 7.87	300 x 200	6.1	155

Folded Frame Straight Line Cable Laying Roller Galvanised Finish Heavy Duty 0
