Product Details:
|
| Name: | Cable Reel Stands | Rated Load: | 50-500KN |
|---|---|---|---|
| Application: | Electric Power Wiring Construction | Weight: | 115-800kg |
| Feature: | Hydraulic Column Type | Material: | Steel |
| High Light: | 20 Ton Cable Drum Stand,500KN Cable Reel Stands,20T Cable Reel Stands |
||

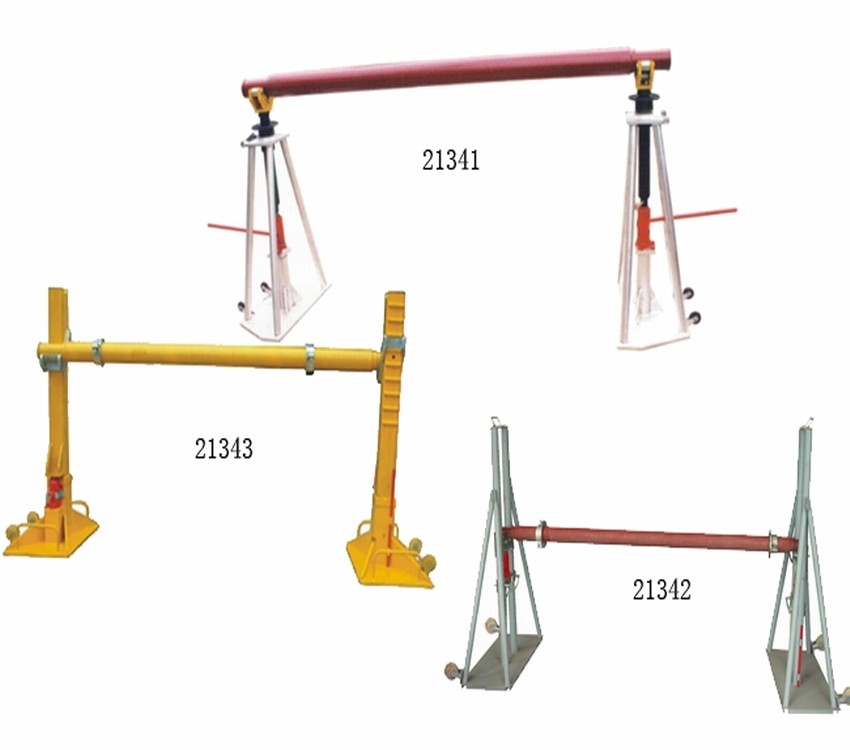

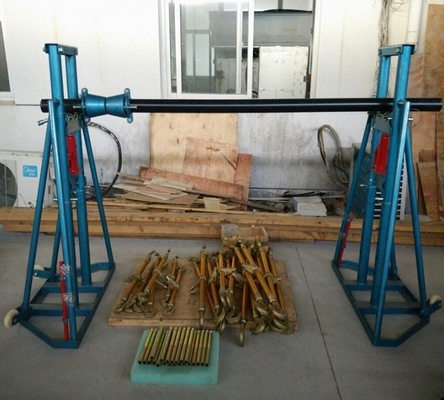

20 Ton cable drum stand with hydraulic lifting jack in line construction
Our cable reel stand functions as an important support during the construction of large sized cable reel. Hydraulic Column Type Cable Reel Stand Features Used hydraulic column type device, uses facilely, durable and light-weight, suits the manual operation,product is used for wire releasing manual. Application Apply to carrying the wire reel for wire extension on line construction. The lift height can be adjusted.
|
Item Number
|
Model
|
Rated Load (KN)
|
Height Adjustment Range
(mm) |
Type
|
Weight(kg)
|
|
K21340
|
SIC-5
|
50
|
900-1300
|
Hydraulic Column
|
150
|
|
K21341
|
SIC-10
|
100
|
1350-1750
|
200
|
|
|
K21344
|
SIC-20
|
200
|
1550-2100
|
Hydraulic Column
|
400
|
|
K21345
|
SIC-50
|
500
|
1850-2250
|
800
|
