Product Details:
|
| Rated Load: | 5 KN | Application: | Stringing |
|---|---|---|---|
| Type: | Stringing Block | Certificate: | ISO9001 |
| Item: | Light Weight Single Sheave Stringing Pulley Block With Nylon Wheel For ACSR 25-70mm2 | Wheel Size: | 120*30mm |
| Wheel Material: | Nylon | ||
| Highlight: | Single Sheave Stringing Block,Stringing Equipment Accessories,Stringing Equipment Block |
||

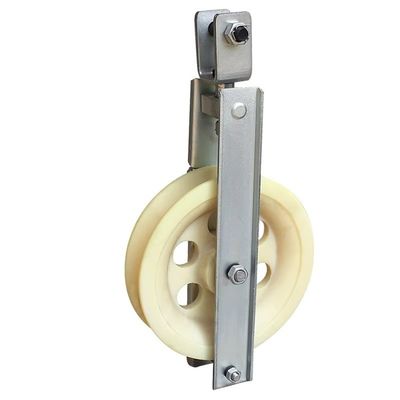

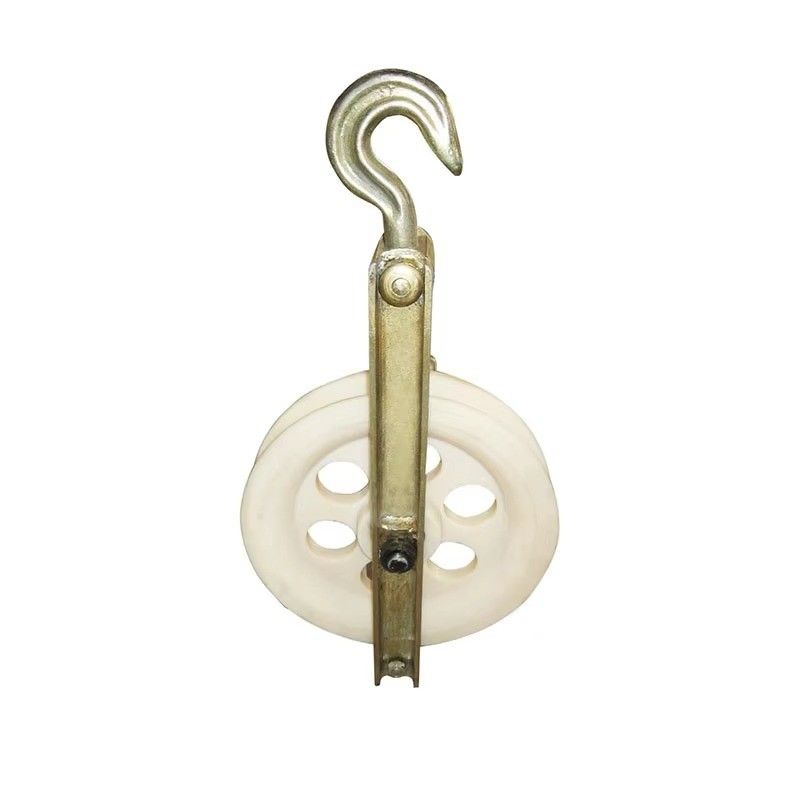

Stringing Equipment Accessories Single Sheave Stringing Block
Application
It is used for releasing the aluminum wire, ACSR, insulated wire in pole and tower erection.
Features
Specifications of nylon cable pulleys
1) nylon pulleys could be used for releasing insulated wires and cables in transmission line.
2) very smoothly
3) kind: single wheel nylon pulleys, double wheels nylon pulleys, three wheels nylon pulleys
4) material:nylon wheels
Technical Data
| Product No. | Model Type | Applicable Condcutor(mm2) | Rated Load(KN) | Weight(kg) | Material of Wheel |
| 80335 | SHD-120*30 | LGJ25-70 | 5 | 2 | Aluminum wheel |
| 80336 | SHD-160*40 | LGJ95-120 | 10 | 3.2 | Aluminum wheel |
| 80337 | SHD-200*40 | LGJ150-240 | 15 | 3.8 | Aluminum wheel |
| 80338 | SHD-200*60 | LGJ150-240 | 15 | 4.2 | Aluminum wheel |
| 80339 | SHD-250*40 | LGJ150-240 | 20 | 5.2 | Aluminum wheel |
| 80340 | SHD-250*60 | LGJ300-400 | 20 | 5.5 | Aluminum wheel |
| 80341 | SHD-270*60 | LGJ300-400 | 20 | 6.8 | Aluminum wheel |
| 80342 | SHD-320*60 | LGJ300-400 | 20 | 10.5 | Aluminum wheel |
| 80343 | SHD-400*80 | LGJ400-500 | 20 | 12 | Aluminum wheel |
| Product No. | Model Type | Applicable Conductor ACSR(mm2) | Rated Load(KN) | Weight(kg) | Matetrial of wheel |
| 80344 | SHDN-120*30 | 25-70 | 5 | 1.5 | MC Nylon |
| 80345 | SHDN-160*40 | 95-120 | 10 | 2.4 | MC Nylon |
| 80346 | SHDN-200*40 | 150-240 | 15 | 2.6 | MC Nylon |
| 80347 | SHDN-200*60 | 150-240 | 15 | 3.1 | MC Nylon |
| 80348 | SHDN-250*40 | 150-240 | 20 | 3.7 | MC Nylon |
| 80349 | SHDN-250*60 | 300-400 | 20 | 3.9 | MC Nylon |
| 80350 | SHDN-270*60 | 300-400 | 20 | 4.4 | MC Nylon |
| 80351 | SHDN-320*60 | 300-400 | 20 | 7.5 | MC Nylon |
| 80352 | SHDN-408*75 | 400-500 | 20 | 11 | MC Nylon |
